> New jet 9" x 49" taper vertical milling machine 690180
New jet 9" x 49" taper vertical milling machine 690180

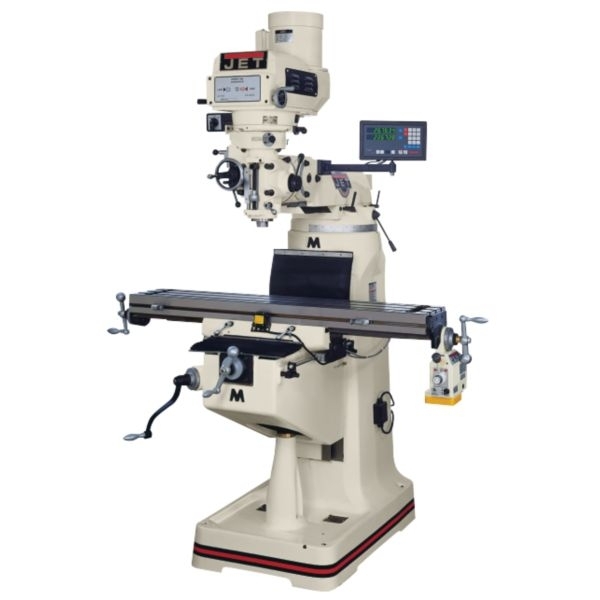

JET JTM-4VS-1, 9" X 49" 2 HP 1-Phase R-8 Taper Variable Speed Vertical Milling Machine
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Chrome plated motor shaft with lower bearing support
* Spindle head is internally cooled
* Satin chrome finished dials
* Heavy-duty splined motor drive
* One-piece quill pinion and shaft
* Three-stage power down feed with automatic stop
* Locks on all movable surfaces
* Precision hardened and ground ways and table
* Adjustable gibs throughout
* Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
* Tolerance table sheet included
Motor 2 HP, 1 Ph 115/230V; Pre-wired 230V Net Weight 2,420 lbs. Spindle Taper R-8 Number Of Spindle Speeds Variable Range Of Spindle Speeds 60 - 4,200 RPM Down Feeds Of Spindle .0015 - .003 - .006 (per/rev./in.) T-Slots 3 Maximum Weight Of Work Piece 660 lbs. Quill Diameter 3-3/8-in Spindle Travel 5-in Head Movement 90 and 176; Right and ; Left; 45 and 176; AP; 110 and 176; Forward and ; Back Distance Spindle To Table 17-1/2-in Distance Spindle To Column 4-1/2-in (Minimum) Distance Spindle To Column 19-in (Maximum) Longitudinal Table Travel (X-axis) 34-in Cross Travel (Y-axis) 12-in Collet Capacity 1/8-in - 7/8-in T-Slots Size 5/8-in Travel Of Ram 14-1/2-in Overall Dimensions 65-1/2-in x 63-in x 85-in
* 9" x 49" 2 HP 1-Phase R-8 Taper Variable Speed Vertical Milling Machine - 690180
* One-Shot Lubrication System
