> New gs-23B / GS23B,4CX1600U/ 1,5KW ussr tube in box

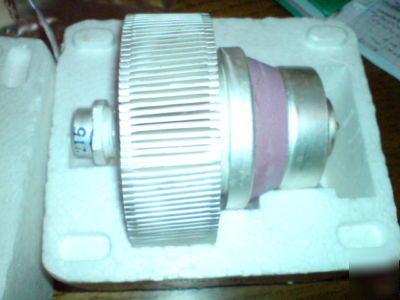

New gs-23B / GS23B,4CX1600U/ 1,5KW ussr tube in box
The GS-23B power tetrode generates and amplifies power at up to 1,000 MHz in RF equipment. The GS-23b is generally considered to be similar to the 4CX1600U. Some of these tubes function very well in the 23cm band; a limited sampling of about three dozen tubes shows approximately one in six, (+/-) will work at 1296MHz.
Cathode: indirectly heated, oxide-coated.
Cooling: Forced Air (on with heater, off 5 min after shut down).
A - anode; C1 - grid 1; 1 - heater;
KP - cathode & heater; C2 - grid 2;
Mutual conductance (Va = 1.25KV, Vg2 = 400V, Ia = 900mA), mA/V:
Negative cutoff bias (Vg1) with Va = 1.25KV, Vg2 = 400V, Ia = 10mA, V:
Heater voltage, V, Nominal / @ 1 GHz
Mutual conductance (Va = 2.1KV, Vg2 = 400V, Ia = 1A,), mA/V:
Average grid voltage (Vg1) with Va = 1.25KV, Vg2 = 400V, Ia = 900mA, V:
Grid voltage (Vg1) with Va = 1.25KV, Vg2 = 400V, Ia = 900mA, V:
Cutoff bias (Vg1) with Va = 1.25KV, Vg2 = 400V, Ia = 10mA, V:
Maximum (absolute value) of negative Grid voltage (Vg1), V
Maximum Peak Anode voltage (Va), KV:
Maximum Pulsed (17% duty cycle) Anode voltage (Va), KV:
Maximum Screen Grid voltage (Vg2), V
Maximum pulsed (17% duty cycle) cathode current (Ic), A:
Screen Grid (G2) Dissipation, W:
Control Grid (G1) Dissipation, W:
Temperature at envelope (hottest point), C
Averaged Characteristic Curves
Averaged Anode Characteristic Curves
