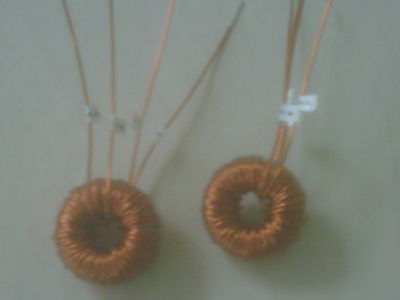

Transformers, choke differential 270 volts dc qty=2
CHOKE, DIFFERNTIAL 270 Volt DC
Inductance: (1-4) With 2 connected to 3: 580 +/- 10% Microhenohenries at no load 400 uh minimum @ 4 Amps
Load Current: 4 DC Amps Maximum
DC Resistance: <0.12 Ohms Maximum
Dielectric withstanding voltage winding to core, winding to mounting hardware 500 VRMS (minimum)
Physical Characteristics: Outside Diameter 1.37" Max, Width .75" Max, Lead Lenght 3.00"
Construction: Core - Magnetics Inc. Part umber 55894A, Wire #19 AWG HML Wire - 44 Bifilar Turns (0.002 Pounds), Leads Marked with Brady Labels
