Generac guardian model 5504 17 kw generator

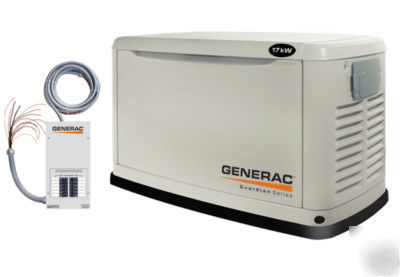

Model 5504 17 kW Generator with 16 Circuit Automatic Transfer Switch
Generac Guardian 17 kW Model 5504 with
16 Circuit Automatic Load Center Transfer Switch
(Steel Housing)Overstock Sale 3 Days Only(IN STOCK VA, MA, TX, and FL)
(FOR TECHNICAL Assitance Call: Toll Free: 866-4206290 or email ****@onsitepowergenerators.com)
Detailed Description...........
True Power Electrical Technology
Two Line LCD Digital Controller
Automatic Transfer Switch with Built-In Priority Load Center
Pre-wired External Connection Box
Flexible Fuel Line Connector
External Main Circuit Breaker
Natural Gas or LP Gas Operation
The NEW Guardian 17 kW standby generator provides the quietest, cleanest and most affordable pre-wired, pre-packaged power protection on the market. It comes standard with a 16 circuit automatic transfer switch that protects most critical circuits in your home. For extra convenience, this model has a digital control panel, external main circuit breaker, system status LED, maintenance interval LED, and an external GFCI outlet for outdoor power needs
Convenient, Hands-Free Operation
No fueling. No manual start. No extension cords. Runs on natural gas or liquid propane
True Power Technology provides safe operation of sensitive electronics
Increased output for more protection, includes automatic transfer switch with 16 circuits protected (NEMA 1, indoor rated only)
Patented Whisper Test feature makes the 17kW model as quiet as a car at idle during the weekly self-testing cycle
Includes 30 ft., 5 ft. & 2 ft. pre-wired conduits, outdoor connection box, flexible fuel line pigtail and composite mounting pad
Generac OHVI Industrial Engine
The only air-cooled engine designed specifically for generators
* Long-run, long-life design: Over 3,000 hours of run time
* High-torque design: Responds instantly to large electrical loads
* Low-maintenance: 2 year, 200 hour service intervals
Galvanized steel and tough paint finish for unmatched durability (For ultimate weather protection, Model 5505 features an aluminum enclosure for superior corrosion resistance)
For safety and certified power ratings
Product Manuals for the Model 5504 17 kW Generator
EV WD SD MNL,16-17KW HSB W/ TS
100-Amp Indoor Automatic Transfer Switch w/ 8 Circuits included
30' Pre-Wired Conduit From Transfer Switch To Generator
2' Pre-Wired Conduit From Transfer Switch To Main Panel
Composite Mounting Pad and 1 flexible fuel line connector
Emergency Standby Power Generator
Runs off natural gas or LP fuel source
Sound level comparable to an idling car
Runs at a quiet 66 decibels at 23 feet
Generac OHVI Air-Cooled Engine
Maximizes engine breathing for increased fuel efficiency
