30" jones & lamson epic 230 twin spindle comparator

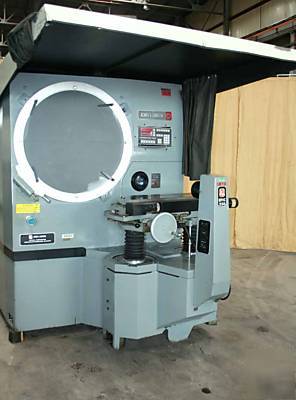

30" JONES & LAMSON EPIC 230 SIDE SCREEN DIGITAL DISPLAY TWIN SPINDLE COMPARATOR
Power Operated Horizontal And Vertical Table Travel. 6-Position Lens Selector. 10X and 20X Lenses. Inch-Metric Quadracheck 2000 Multifunctional Programmable Digital Read-Out. Hard Chrome Plated Table. Projection Reflection Unit. Shroud And Curtains.
Horizontal Capacity with DRO 12"
Angle Measuring (1 Min. Graduation) 360
Helix Rotation Left and Right 15
Chart Rails for Charts 16" x 20"; 20" x 24"; 24" x 24
Lens C/L to Table With Helix: Maximum 10"
Lens C/L to Table With Helix: Minimum 1"
Lens C/L to Table Without Helix: Maximum 12"
Lens C/L to Table Without Helix: Minimum 3"
