3 watt 808NM c mount laser diode 8X8 grin lens dpss yag

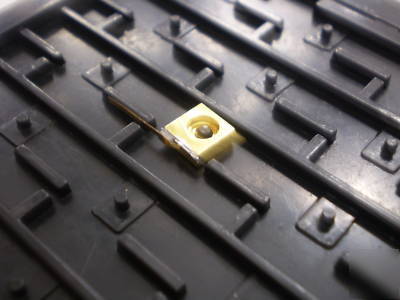

NEW, 3 WATT, 808nm, C MOUNT LASER DIODE WITH 8X8 AR COATED MICRO GRIN LENS
STATE OF THE ART GaAIAs INDEX GUIDED MULTI QUANTUM WELL (MQW), MAXIMUM LIFETIME ACTIVE ALUMINIUM FREE PHOTON CAVITY
IMPORTANT NOTE: THESE EMIT A SQUARE BEAM, THIS IS ACHIEVED BY THE SPECIAL FAC GRIN LENS, THIS BEAM SHAPE IS WHAT IS REQUIRED FOR PUMPING NLO LASER CRYSTALS SUCH AS Nd:YVO4, YAG ETC. THIS BEAM SHAPE IS ALSO BETTER FOR BURNING AND ETCHING AND NIGHT VISION SOURCES BECAUSE IT'S A SQUARE COMPARED TO 99% OF ALL OTHER LASER DIODES FOR SALE WHICH EMIT A RECTANGLE WHICH IS NOT SUITED TO THESE APPLICATIONS BECAUSE A SMALL PUMP BEAM DIAMETER IS WHAT IS REQUIRED FOR MAXIMUM CONVERSION OF 808nm INFRARED INTO 1064nm, PUMP BEAM SHAPE IS ONE OF THE MOST IMPORTANT THINGS WHEN CONVERTING 808nm INTO 532nm GREEN OR 473nm BLUE.
TYPE: C MOUNT WITH MICRO GRIN FAC LENS
OPERATING CURRENT MAXIMUM: 3.5 AMPS
THRESHOLD CURRENT: 1.3 AMPS.
OPERATING VOLTAGE NOMINAL: 2.2VDC.
BEAM DIVERGENCE: 8/8 degrees
PHOTON CAVITY FACET AREA (MICRONS METRIC): 200X1.
SERIES RESISTANCE (OHMS):<0.25.
WAVELENGTH TEMPERATURE COEFFICIENT (nm/DEG Cel): 0.3
THESE ARE NEW STATE OF THE ART UNUSED LASER DIODES
SOME USES ARE AS A REPLACEMENT PUMP DIODE FOR 532nm GREEN AND 473nm BLUE DPSS LASERS AND HAND HELD GREEN LASER POINTERS, OTHER USES ARE NIGHT VISION LIGHT SOURCES, PLASTIC WELDING, SURFACE MOUNT SOLDERING, ENGRAVING AND ETCHING ETC.
WE HAVE MOST LASER DIODES IN STOCK AT VERY COMPETITIVE PRICES JUST SEND AN E-MAIL FOR ORDERS.
SOME 808nm LASER DIODES INCLUDE: TO-18, (5.6mm) with or with out can cover -TO-5 (9mm) with or with out can
cover, TO-3 with or without cover, and C-MOUNT TYPES FROM 200mW TO 5 WATT multi mode or single mode, with
micro A/R coated GRIN lenses that produce an 8 x 8 degree divergence square beam, or your choice of a 12 x 40 degree divergence rectangle beam.
URGENT - IMPORTANT - ATTENTION .
TO ALL PEOPLE SHOPPING AROUND FOR C MOUNTS
THERE IS CURRENTLY A SELLER NOT IN THE USA OR AUSTRALIA THAT FROM TIME TO TIME MUST TELEPORT HIMSELF INTO A WORLD OF FAIRYTALE IN WHICH HE ENTERS A STATE OF INVENTION- IMAGINATION -SPECIFICATION (I.I.S) IN THIS STATE HE INVENTS TECHNICAL SPECIFICATIONS FOR EXAMPLE 3/8 fac lens .. THIS IS QUITE FUNNY TO US AND TO MOST LASER BUILDERS IT DOES NOT MAKE SENSE BECAUSE 3X8 DOES NOT EXIST AND NOBODY MAKES THEM FOR C MOUNTS, NOT ON THIS PLANET OR DIMENSION ANYWAY. A WORD OF ADVICE: THE 3/8" IS REALLY A 20/40 DIVERGENCE POORLY POSITIONED FAC AND 3X8 WAS INVENTED VIA I.I.S INVENTION IMAGINATION SPECIFICATION TO TRY TO OUT PERFORM US AND OUR PRECISION 8X8 DIVERGENCE FAC. ALSO IF IT WERE TRUE AN 3X8 WOULD BE A RECTANGLE BEAM CROSS SECTION WHICH IS STILL WHAT YOU DON'T NEED FOR MAXIMUM PERFORMANCE IN A DPSS SYSTEM.
DANGER THIS IS A CLASS 4 . 3 WATT CONTINUOUS WAVE 808nm LASER DIODE. VISIBLE AND/OR INVISIBLE LASER RADIATION EMITTED FROM DEVICE. AVOID EYE AND SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION.
1) You WILL use this device in a safe and sane manner for a legal purpose.
2) You know the electronic safety and ESD precautions necessary with this item and therefore accept the working on arrival warranty.
FOR MORE INFORMATION AND INSTANT PURCHASING OF THIS ITEM, CONTACT PAUL AT: ****@iprimus.com.au
TRADING FOR AEROSPACE DYNAMICS, MELBOURNE AUSTRALIA. CERTIFIED REGISTERED AUSTRALIAN BUSINESS.
PACKAGED TO AEROSPACE/MILITARY SPECIFICATIONS.
COPYRIGHT 2010: AEROSPACE DYNAMICS
