13" swg 40" cc acer 1340G dynamic series engine lathe,

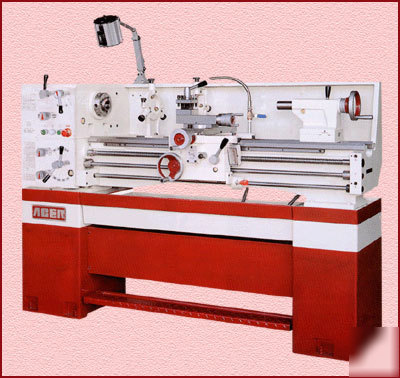

13" Swg 40" cc Acer 1340G Dynamic Series ENGINE LATHE,
13" Swing 40" Centers Acer 1340G Dynamic Series ENGINE LATHE, 3 HP, D1-4 Camlock W/1.5" Spindle B
Swing Over Cross Slide: 7-5/8"
Spindle Speeds: 80-2000 RPM (9 steps)
Pitch of Leadscrew: 24 Diameter, 4 TPI
Metric Pitch Threads: 0.4 - 7mm/pitch (30 kinds)
Range of Longitudinal Feeds: 0.0016" - 0.03"/rev.
Range of Cross Feeds: 0.0008"-0.015"/rev.
Floor Dimensions: 67-3/4" x 28-3/8"
Packing Dimensions: 75" x 30" x 58"
HEADSTOCK: All gears are made with chromium molydenum
steel and are hardened & ground to its accuracy. A forced
lubrication system lubricates all running gears and bearing within
GEAR BOX: Unique two lever universal gear box offers a wide
range of cutting capacity. All ranges can be reached by moving
SPINDLE: 1-1/2" bored spindle is made from medium carbon steel
and is induction hardened & ground to its final accuracy. It also
has a two-point support with both bearings being taper roller.
TAILSTOCK: Keyed 1-7/16" diametered quill is hardened to
Weigh in at 1,320 / 1,380 lbs.
7-1/2" wide bed way with FC-30 casting iron.
