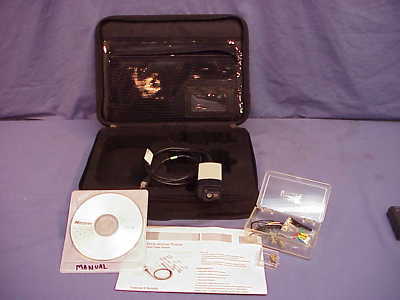

Tektronix TAP1500 1.5GHZ tekvpi active probe & accy’s
TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical
performance required for today s digital system designs. Specifically designed for use and direct
connection to the TekVPI probe interface used on Tektronix' new DPO7000 and DPO/MSO4000
Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and
measurement fidelity by solving three traditional problems:
Lower DUT loading effects with 1 pF input capacitance and 1 M input resistance
Versatile DUT connectivity for attaching to small SMDs
Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO/MSO4000 Series
Oscilloscope models, up to 1 GHz
Outstanding Electrical Performance
8 V to +8 V Input Dynamic Range
10 V to +10 V DC Input Offset Range
* Versatile Mechanical Performance
Small Compact Probe Head for Probing Small Geometry Circuit Elements
DUT Attachment Accessories Enable Connection to SMDs As Small As 0.5 mm Pitch
Robust Design for Reliability
High-speed Digital Systems Design
Component Design and Characterization
Manufacturing Engineering and Test
Signals with Voltage Swings up to 16 Vp-p
CLICK HERE for additional information and specifications
