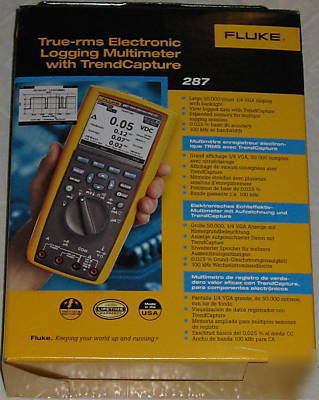

New fluke 287 digital multimeter - * * * * - msrp 465
If needed we can Calibrate for an additional $49.99 a $99.99 service
Calibration thanks to AcuCal Inc.
ACUCAL LABORATORY MAINTAINS NAVY CERTIFICATION (7CB) !!!!!
A DMM so advanced, it shows you the trends.
For electronics professionals who demand the best in performance, accuracy and capabilities, we introduce the new Fluke 287 Electronic True-rms logging multimeter with TrendCapture. Use it to quickly characterize and document design performance. TrendCapture allows the engineer to graphically view logged readings after the recording session right on the DMM display. Scroll buttons and soft keys offer easy navigation and custom displays. For instant help with any function, just press the i button.
* Large 50,000 count, 1/4 VGA display with white backlight for fast, accurate viewing of measurements
* Logging Function with TrendCapture plots measurements as single line to help detect anomalies over time, storing up to 10,000 readings.
* Battery saving sleep mode allows data logging for over 200 hours uninterrupted
* Event and trend recording Helpful for troubleshooting intermittent problems or profiling loads.
* Soft keys and scroll buttons for easy navigation control, access to secondary functions, and custom displays
* Saved measurements allows the user to name and recall measurements made in the field
* More information Multiple readings per display
* Peak capture to record transients as fast as 250 s
* Field upgradeable and expandable meter lets users stay current as new capabilities are added
* PC Interface for closed-case calibration and easy data transfer (FVF Cable optional)
* Dual rated CAT IV 600 V/CAT III 1000 V
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.025% accuracy
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.4% accuracy (true-rms)
500.00 A, 5000.0 A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.15 % accuracy
500.00 A, 5000.0 A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.7% accuracy (true-rms)
-200.0 C to 1350.0 C (-328.0 F to 2462.0 F) @ 1.0 % accuracy
50.000 W (289 only), 500.00 W, 5.0000 kW, 50.000 kW, 500.00 kW, 5.0000 MW, 50.00 MW, 500.0 MW @ 0.05 % accuracy
1.000 nF,10.00 nF 100.0 nF, 1.000 F, 10.00 F, 100.0 F, 1000 F, 10.00 mF, 100.00 mF @ 1.0 % accuracy
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz @ 0.005 % + 1 accuracy
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
500.00 A, 5000.0 A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
-200.0 C to 1350.0 C (-328.0 F to 2462.0 F)
500.00 , 5.0000 k , 50.000 k , 500.00 k , 5.0000 M , 50.00 M , 500.0 M
1.000 nF,10.00 nF 100.0 nF, 1.000 F, 10.00 F, 100.0 F, 1000 F, 10.00 mF, 100.00 mF
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Random vibration per MIL-PRF-28800f Class 2
1 meter drop per IEC/EN 61010-1 2nd edition
CAT III 1000 V / CAT IV 600 V safety rated
Mechanical & General Specifications
Maximum voltage between any terminal and earth ground
(HxWxL 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
100 minimum, 200 hours in logging mode
6 AA alkaline batteries, NEDA 15A IEC LR6
