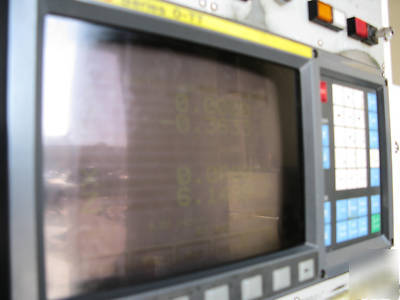

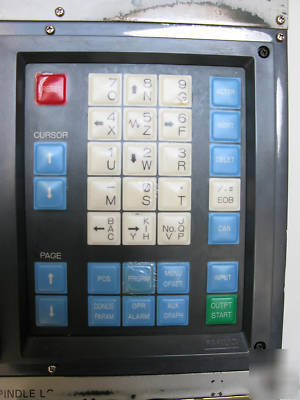

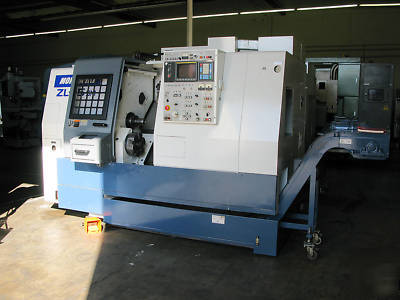

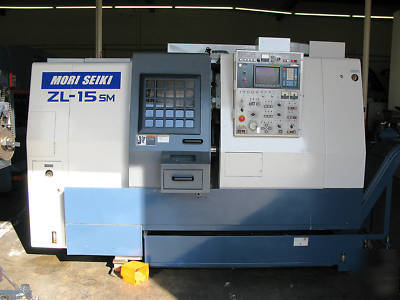

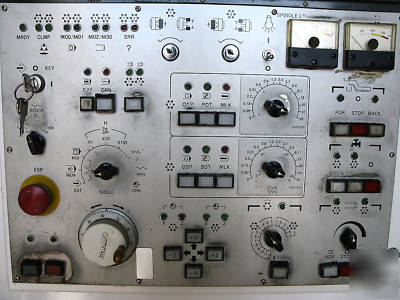

> 1990 mori seiki zl-15 smc cnc lathe w/ fanuc ott video

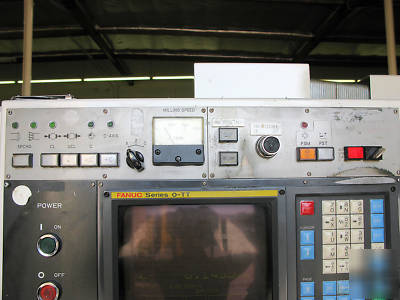

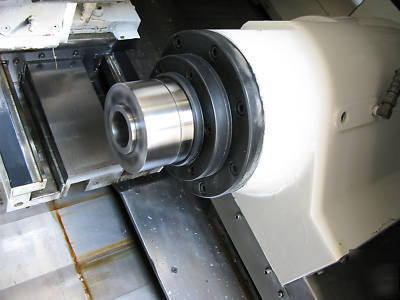

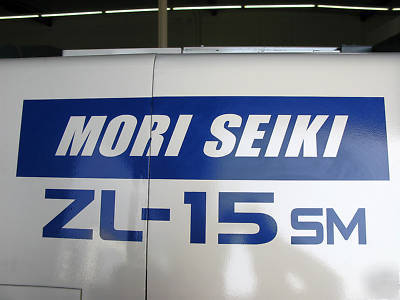

1990 mori seiki zl-15 smc cnc lathe w/ fanuc ott video
* SWING OVER CROSSSLIDE 14.57"
* MAX MACHINING DIAMETER 6.30"
* CHUCK REQUIRED 6" MAIN SPINDLE
* SPINDLE SPEED RANGE 50-5000 RPM

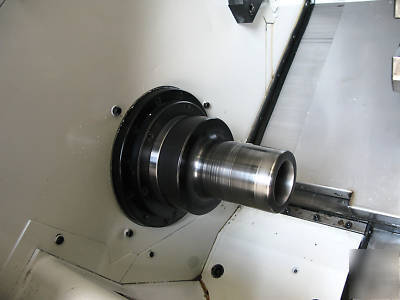

* SPINDLE NOSE A2-5, SPINDLE BORE 2.05"

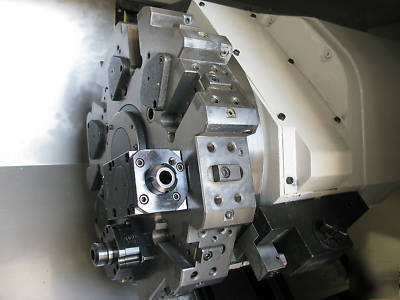

* TOOL POSITIONS 12 STATIONS,ROTARY TOOLS UP TO 6 STATIONS
* RAPID TRAVERSE SPEED 472" MIN, X Z = 590" MIN
* SQUARE CUTTING TOOLS 3/4 INCH
* BORING BAR SHANK 1-1/4 INCH
* SPINDLE SPEED RANGE 50-5000 RPM SPINDLE BORE 1.38"
* X AXIS TRAVEL 7.68" Z AXIS TRAVEL 15.35"

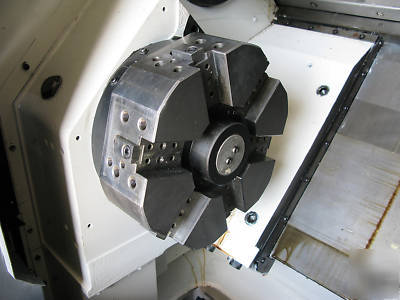

* TURRET TYPE: 6 STATIONS TOOL POSITIONS 6
* SQUARE CUTTING TOOL SHANK 3/4 INCH
* MAIN SPINDLE MOTOR 7.5'5.5 KW
* SUB SPINDLE MOTOR 5.5/3.7 KW
* ROTARY TOOL SPINDLE MOTOR 2.21/1.5 KW
* POWER CONSUMPTION: 36 KVA,
VIDEO http:// /watch?v=fO-nIAhziQ4
