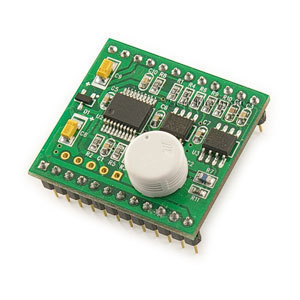

Temperature & relative humidity sensor module HS1101
Temperature and Relative Humidity Sensor Module
A perfect PIC16F690-HS1101-based humidity and temperature module that can be used in many applications to meausre temperature and relative humidity.
Humidity accuracy (10 to 95 % RH)
Temperature coefficient (0 to 60 C )
Response time (33 to 76 % RH, still air @ 63%)
Deviation to typical response curve (10% to 90% RH)
Recovery time after 150 hours of condensation
1. Processing chip: PIC16F690
2. Humidity measuring chip: HS1101
3. Size: 30(mm)X29(mm)/1.22(inch) X 1.14(inch)
4. Wide range relative humidity measuring
7. Analog: relative humidity & temperature voltage signal linear output
8. Digital: UART half duplex, SPI slave mode
9. DIP-like packaging, which facilitates system integration
11. Pins are plated with 3 m thick gold which can effectively prevent abrasion and corrosion.
1. Humidity & temperature measuring in industrial production
2. Warehouse environment surveillance
3. Humidity & temperature measuring in vegetable greenhouse
5. Books and archives storage in library
8. Automation & process control
9. Building control and HVAC
Temperature and Relative Humidity Sensor Module x1
