> New b&e aerospace stainless tee 1 inch compression ms

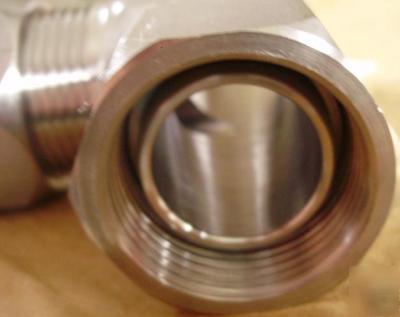

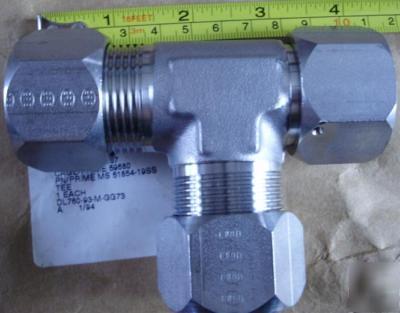

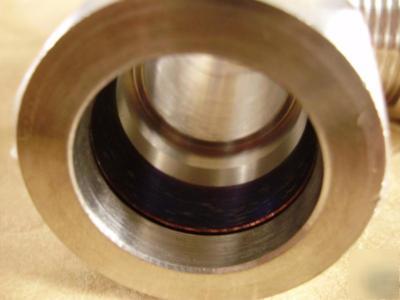

New b&e aerospace stainless tee 1 inch compression ms
MRC: Requirement Name: Requirement:
AHNC CONNECTION STYLE B12 SWIVEL NUT, FLARELESS 1ST END
AHNC CONNECTION STYLE B66 FLARELESS 2ND END
AHNC CONNECTION STYLE B66 FLARELESS 3RD END
AHSJ LEG LENGTH 1.859 INCHES NOMINAL 1ST END
AHSJ LEG LENGTH 1.734 INCHES NOMINAL 2ND END
AHSJ LEG LENGTH 1.734 INCHES NOMINAL 3RD END
AWLS CONNECTION TYPE THREADED INTERNAL TUBE 1ST END
AWLS CONNECTION TYPE THREADED EXTERNAL TUBE 2ND END
AWLS CONNECTION TYPE THREADED EXTERNAL TUBE 3RD END
CQJX NOMINAL THREAD SIZE 1.312 INCHES ALL ENDS
CQRB SEAT ANGLE 12.0 DEGREES ALL ENDS
CWFD NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 1.000 INCHES ALL ENDS
MATT MATERIAL STEEL CORROSION RESISTING OVERALL
SFTT SURFACE TREATMENT PASSIVATE OVERALL
SR-1 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS51854-19SS
THSD THREAD SERIES DESIGNATOR UNF ALL ENDS
TMQY FURNISHED ITEMS AND QUANTITY 2 TUBE COUPLING NUT W/SLEEVE
ZZZK SPECIFICATION/STANDARD DATA 96906-MS51854 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
ZZZT NONDEFINITIVE SPEC/STD DATA 26B FIGURE
