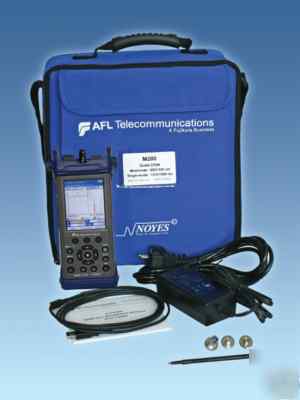

Afl - noyes M200-quad sm-mm otdr
850/1300/1310/1550nm SM-MM OTDR
The Noyes M200 from AFL Telecommunications offers unmatched OTDR capabilities in a handheld package weighing less than 1 kg (2 lb). Multimode, Single-mode, and Quad wavelength models are offered. With short dead zone and intermediate range specifications, the M200 is ideal for Tier 2 testing of premises (building and campus) networks or certification and troubleshooting of FTTX PON networks. And its bright, transflective display makes it suitable for both indoor and outdoor operation.
The M200 is based on a new hardware/software platform that supports automatic and manual setup, precision event analysis, dual-wavelength testing, rich file naming and folder setup, 6-hour battery life, internal and removable media data storage, and USB connectivity. Test ports are equipped with tool-free adapters, which can be changed in seconds. A custom-designed polycarbonate case and shock-absorbing boot make it our most rugged OTDR ever.
USB Host Port offers a new convenient way to transfer data from the M200 to a PC. By using a standard USB Flash Drive to transfer traces, the user no longer needs a USB Cable, ActiveSync or a Compact Flash reader. Using the Tools in the M200 File Manager, one or more folders or files can be copied to a USB Flash Drive for transfer to a PC.
22 dB (MM), 26 dB (SM) dynamic range
Tool-free, switchable adapters
Transflective (indoor/outdoor) touchscreen
Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1:2007-03
Center Wavelengths 850/1300 nm 1310/1550 nm
Wavelength Tolerance 20/ 30 nm 20/ 30 nm
Dynamic Range (SNR = 1) 22 dB 26 dB
3 10, 30, 100, 300 ns, 1, 3 s 10, 30, 100, 300 ns, 1, 3, 10 s
Range Settings 250 m to 32 km 250 m to 208 km
Sampling Points Up to 16,000 Up to 16,000
Min. Data Point Spacing 0.25 m
Group Index of Refraction (GIR) 1.4000 to 1.6000
Distance Uncertainty (m) (1 + 0.005% x distance + data point spacing)
Linearity 0.05 dB/dB (typical)
Trace File Format Bellcore GR-196 Version 1.1
Trace File Storage Medium Internal non-volatile memory, removable Compact Flash Card (not included), and USB Flash Drive
Trace File Storage Capacity > 100 internal; thousands on Compact Flash or USB Flash Drive
Trace File Transfer to PC USB Flash Drive Type 1.1, Compact Flash or Mini USB Cable with ActiveSync
Visual Fault Locator Specifications
Safety Class Class II FDA 21 CFR 1040.10 and 1040.11; IEC 825-1:1993, 60825-1:2007-03
Size (in boot) 23 x 11 x 7 cm (8.8 x 4.3 x 2.8 inches)
Operating Temperature -10 to +50 C
Storage Temperature -20 to +60 C
Relative Humidity 0 to 95% RH (non-condensing)
Power Removable Li-Ion or 110/220 VAC power adapter
1. Typical distance between the two points 1.5 dB down each side of a reflective spike caused by a -40 dB (Multimode) or -45 dB (single-mode) event using 10 ns pulse width.
2. Typical distance from event location to point where trace is within 0.5 dB of backscatter.
3. 3 s pulse width not available at 850 nm.
5. Typical, from fully discharged to fully charged state, unit may be operating.
All specifications are subject to change.
All specifications valid at 23 C 2 C (73.4 F 3.6 F) unless otherwise specified.
This unit is in perfect condition with a new product warranty. This is a rare unit with little field use. Save thousands over a new unit that looks virtually the same, performs the same and has the same warranty.
THE UNIT COMES WITH A 7 DAY RIGHT OF REFUSAL AND 1 YEAR WARRANTY
