> 16" x 50" clausing cnc teach lathe
16" x 50" clausing cnc teach lathe

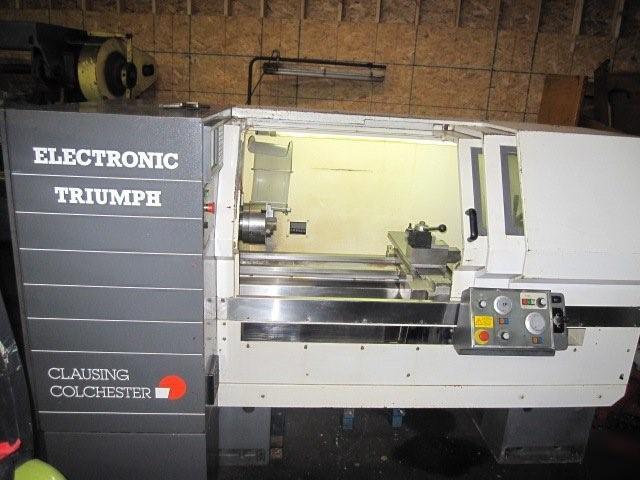

16" X 50" CLAUSING CNC TEACH LATHE
SWING OVER THE BEDWAYS ......................... 16"
CENTRE HEIGHT ..............................
SWING OVER CROSS SLIDE ......................... 10"
WIDTH OF BED ................................... 12-1/2"
DISTANCE BETWEEN CENTERS ....................... 50"
CROSS SLIDE STROKE ............................. 8"
TURNING LENGTH ................................. 47-3/4"
LENGTH OF CROSS SLIDE .......................... 24"
WIDTH OF CROSS SLIDE ........................... 7"
SPINDLE DRIVE RATING ........................... 10 HP
MAXIMUM SPINDLE TORQUE ......................... 960 NM
TOTAL SPINDLE SPEED RANGE ...................... 13 - 2500 REV/MIN
SPINDLE SPEEDS - LOW RANGE ..................... 13 - 275 REV/MIN
SPINDLE SPEEDS HIGH RANGE ...................... 113 - 2500 REV/MIN
SPINDLE NOSE (CAMLOCK) ......................... D1 - 6
SPINDLE BORE ................................... 2"
RANGE OF STANDARD FEEDS ........................ 0.01 TO 500 MM/REV
LONGTUDINAL .................................... 6390 N
TRANSVERSE ..................................... 2550 N
RAPID TRAVERSE LONGITUDINAL & TRAVERSE ......... 3.0 M/MIN
TAILSTOCK BARREL DIAMETER ...................... 3"
TAILSTOCK BARREL STROKE ........................ 6"
TAILSTOCK TAPER ................................ NO 5 MT
WEIGHT ......................................... 4,200 LBS
* GE 20-T FANUC CNC W/TEACHING & PLAYBACK MODE, CONSTANT SURFACE
SPEED,INFINITE THREADING RANGE, HANDWHEELS FOR MANUAL OPERATION
* DORIAN QUICK CHANGE TOOL POST WITH 5 HOLDERS
*** INSPECT MACHINE UNDER POWER ***
