New daiwa cn-801HP hf/vhf rf wattmeter ( )

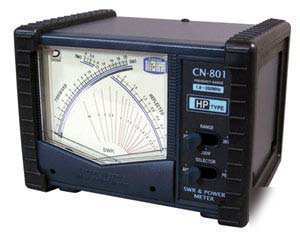

Daiwa CN-801HP HF/VHF In-Line RF Wattmeter Peak/Average
* Average and Peak Reading RF Wattmeter
* Extra Large 4" Meter for Easy Viewing
* Power Range Forward 20/200/2kW
* SWR Detection Sensitivity 5 W min
* Dimensions Weight 6.25 in x 4.3 in x 4. in 2lbs. 3ozs
The CN-801 Series are high quality RF Wattmeters with unique features which make tedious measurements of SWR and Power during antenna tests, matching, and tuning of transmitters a very easy task. SWR and Power indicators are installed in a one meter unit. One scale will indicate Forward Power, another scale Reflected Power and the SWR is indicated at the crossing point for the 2 needles. This unique feature makes it possible to read Forward Power, Reflected Power, and SWR all at the same time.
Front panel switch allows selection of multiple power ranges for improved measurement accuracy at any power level. Front panel switch allows selection of Peak Reading (SSB) and Average reading. Internal 12 VDC panel light (connect to an external source for 12 VDC). The attractive design and large easy to read meter will make this RF Wattmeter a perfect addition to your radio shack!
Specifications for Daiwa Wattmeters
