> New 3 axis step motor driver board controller TB6560

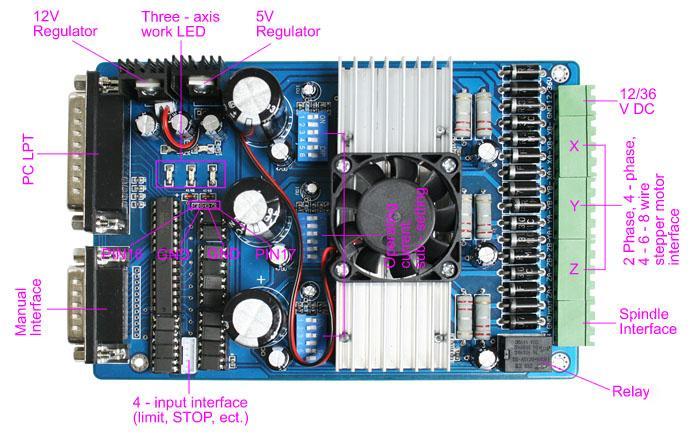

New 3 axis step motor driver board controller TB6560
New 3 Axis Stepper Motor Driver Board Controller TB6560
* Toshiba TB6560AHQ chip - maximum 3.5A drive current, more powerful !(Download TB6560AHQ Datasheet)
* 1 - 1/16 microstep setting - higher accuracy, smoother operation !
* Overload & over-current & over-temperature protection, full protection of your computer and peripheral equipment
* 4 files current settings can be set according to the user the actual current requirement
* Professional design, two-stage signal processing, super anti-jamming
* Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
* Four input control, you can set limit, emergency stop, which is divided into pairs of knives
* Please connect the power supply to the power switch of 12-36 V, 8A
* The interface of driver shall be connected with 2/4 phase, 4/6/8 leads stepper motor within 3A current
* This board can work with both unipolar and bipolar stepper motors
* The spindle motor is controlled by Parallel Interface. The voltage of the spindle motor must comply with the scope of the supply voltage.
Electrical properties (ambient temperature Tj = 25 pm)
2/4 Phase, 4/6/8 leads stepper motors within 3.5A
* 1 x 3Axis TB6560 Stepper Motor Driver
* 1 x CD software(English Manual & Mach 3)
Download English User Manual
