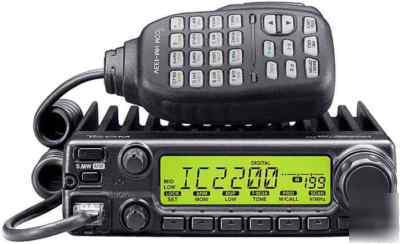

Icom ic 2200H ic 2200
A MOS-FET power amplifier provides 65W of stable output power. A one piece, aluminum chassis helps to keep the transceiver cool and provides durable long-lasting construction.
The optional UT-118 provides digitally modulated and demodulated clear voice and data communication at 4.8kbps. Store up to 6 of your own callsigns, and up to 6 more from other stations. Or instead of recording a callsign, record any message of up to 20 characters. You may then make a call by sending one of your callsigns or a recorded CQ message. The digital callsign squelch allows you to choose an incoming call selected by the callsign. When connected to an external GPS receiver*, position information may be exchanged with other stations.
The IC-2200H retains a familiar user interface to the IC-2100H. The large tuning dial provides easy access to active channels even without looking at the front panel. Secondary functions are easily recalled by holding the appropriate button.
With a total of 207 alphanumeric memory channels, Icom s exclusive DMS system allows you to scan selected memory banks by simply adding and deleting bank links.
The IC-2200H contains 50 CTCSS and 104 2 DTCS encode/decode plus tone scan functions. The pocket beep feature gives you an audible and visual indicator of an incoming call.
DTMFcode squelch and pager function with optional DTMF decoder, UT-108
Weather channel with weather alert function
Built-in 10dB squelch attenuator
Number of memory ch. : 207 (incl., 6 scan edges, 1 call Ch.)
Antenna connector : SO-239 (50 ohm)
Power supply requirement : 13.8 V DC 15% (negative ground)
Frequency stability : 10 ppm 10 C to +60 C
Usable temp. range : 10 C to +60 C; +14 F to +140 F
Dimensions (projections not included) :
Output power (*approx.) : 65, 25*, 10*, 5* W selectable
Maximum frequency deviation (wide/narrow) : 5.0 / 2.5kHz
Spurious emission : Less than 70 dB
Microphone connector : 8-pin modular (600 ohm)
Double-conversion superheterodyne system
Receive Sensitivity (at 12dB SINAD) : 0.133 V typical
Squelch sensitivity : 0.100 V typical (threshold)
Spurious and image rejection ratio : More than 60dBc typical
Audio output power (at 13.8 V DC) : More than 2.4W at 10% distortion with an 8 ohm speaker
Ext SP connector : 3-connector 3.5 (d) mm (1/8")
Remote control microphone, HM-133V
All stated specifications are subject to change without notice or obligation
