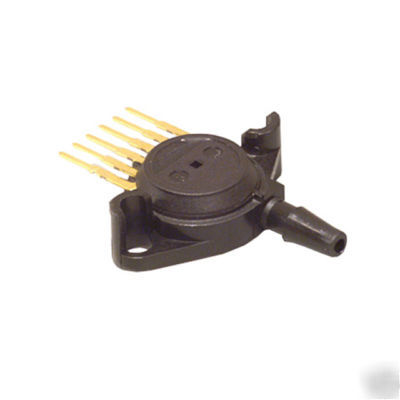

1PCS 1 pcs MPX4100AP integrated circuit freescale
1pcs 1 pcs MPX4100AP Integrated Circuit FREESCALE
The MPX4100A series Manifold Absolute Pressure (MAP) sensor for
engine control is designed to sense absolute air pressure within the intake
manifold. This measurement can be used to compute the amount of fuel
required for each cylinder. The small form factor and high reliability of on-chip
integration makes the MAP sensor a logical and economical choice for
The MPX4100A series piezoresistive transducer is a state-of-the-art,
monolithic, signal conditioned, silicon pressure sensor. This sensor combines
advanced micromachining techniques, thin film metallization, and bipolar
semiconductor processing to provide an accurate, high level analog output
signal that is proportional to applied pressure
1.8% Maximum Error Over 0 to 85 C
Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems
Ideally Suited for Microprocessor Interfacing or Microcontroller Based Systems
Temperature Compensated Over -40 C to +125 C
Durable Epoxy Unibody Element
Ideal for Non-Automotive Applications
Available as Standard Fluorosilicone Gel (MPXA4100A, MPX4100A) or Media Resistant Gel (MPXAZ4100A)
Durable Thermoplastic (PPS) Surface Mount Package
