Curtis pmc dc motor speed controller model 1205-111
This controller is out of a Barrett pallet jack. I had this unit rebuilt by a company that is an authorized repair center for Curtis controllers. You can look them up on the Curtis site, . In fact, insofar as I know, they are the only authorized repair center that Curtis works with. Therefore I will guarantee this controller to work, and it can be returned under the following conditions.
1. You are using controller for what it was designed for.
2. You are absolutely certain that the problem with your machine is the motor controller.
3. You will return at your own expense, I will then return controller to repair station that repaired it in the first place.
6. If controller is damaged I will not return it to you nor will I refund your purchase price since I will have to pay to have it repaired. Make sure all is well with your vehicle before you install controller.

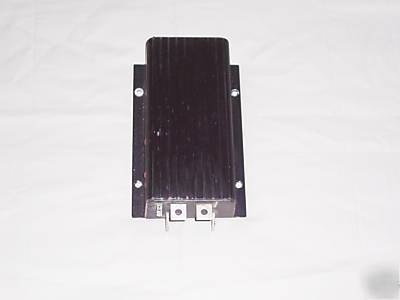

The unit you see in the picture is not the actual one for sale, I took one picture, they all look the same.
Description -Curtis PMC Model 1205 is a power MOSFET electronic motor speed controller designed to provide smooth, silent, efficient and cost effective speed, torque and braking control.
Features - High frequency switching and ultra low voltage drops provide very high efficiency and silent operation. Costs, heatsinking requirements and motor and battery losses are reduced. Low end torque, range and battery life are increased. Environmental protection provided by a rugged anodized aluminum extrusion housing. Simple mounting and wiring with push-on type connectors for control signals. Plated solid copper busses used for all power connections. Thermal protection and compensation circuit provides constant current limit over operating range and under temperature and over temperature cutback. No sudden loss of power under any thermal conditions. No adjustments are required. Simple installation - Uses a two wire throttle potentiometer. Potentiometer fault protection circuitry disables controller if throttle wires become open.High pedal disable prevents controller operation if key is turned on while throttle is applied, this unit is not set up for high pedal disable. Plug braking diode internal to controller.
Specifications - Frequency of operation: 15kHz. Standby current: less than 20 mA. Standard throttle input: 0 - 5k ohms +/- 10%. Weight: 6 lbs. Full power operating temperature: -25C to 75C
