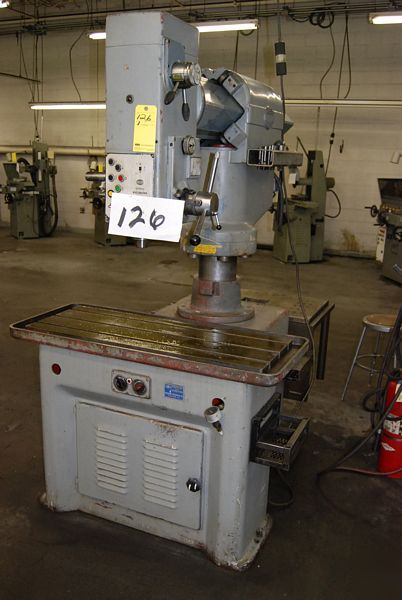

3' arm 7.5" col dia donau DR32 radial drill
3' Arm 7.5" Col Dia Donau DR32 RADIAL DRILL
3' Arm Lth 7.5" Col Dia Donau DR32 RADIAL DRILL
SPECIFICATIONS: STEEL CAST IRON
WITH MEDIUM FEED .......... 1-1/4" ....... 1-3/4"
TAPPING ................... 1-1/16" ...... 1-7/16"
DRILLING SPINDLE TAPER ................... #4 MT
DIAMETER OF COLUMN ....................... 7-11/16"
OVERALL TABLE LENGTH ..................... 47-1/4" x 19-3/4"
WORKING SURFACE OF TABLE (3 T-SLOTS) ..... 42" x 15-7/8"
T-SLOT DISTANCE .......................... 4-15/16"
MIN DISTANCE SPINDLE TO COLUMN ........... 12-3/4"
MAX DISTANCE SPINDLE TO COLUMN ........... 36-1/4"
MIN DISTANCE SPINDLE TO TABLE ............ 10-1/4"
MAX DISTANCE SPINDLE TO TABLE ............ 26"
DRILLING OF SPINDLE STROKE ............... 7-1/2"
VERTICAL ADJUSTMENT ...................... 15-3/4"
DRILLING FEEDS .................. .004", .006", .008", .012"
SPINDLE SPEEDS (18) ...................... 41 - 1800 RPM
OVERALL DIMENSTIONS ...................... 6' x 4' x 7'3"H
WEIGHT ................................... 4,000 lbs
