Carling dpdt switch - 20 amp - 277 vac - (on off on)

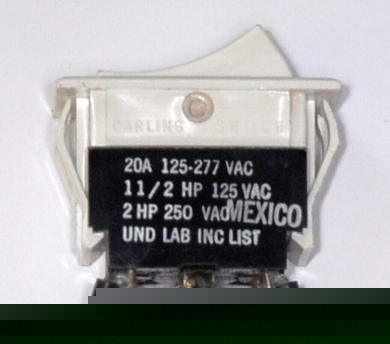

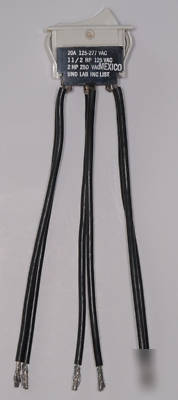

Carling (DPDT) Double Pole Double Throw Rocker Switch

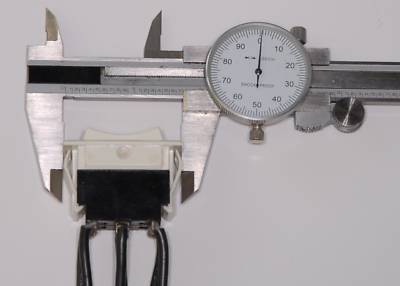

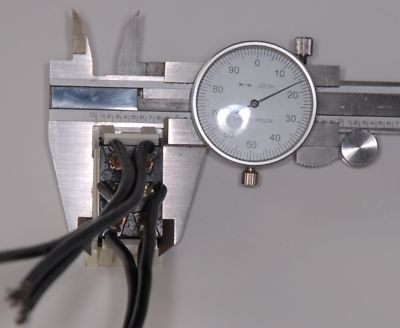

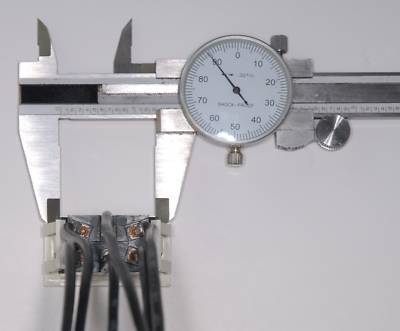

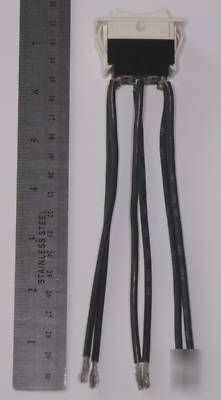

Dimensions: Please See Pictures.
I've used this type of switch to add a "forward and reverse" function to a drill press.
HOW TO: Wire a DPDT rocker switch for reversing polarity:
http:// /id/HOW-TO:-Wire-a-DPDT-rocker-switch-for-reversing-po/
The Double Pole Double Throw Switch (half way down the page):
http:// /project2.htm
