Agilent/hp 8471E planar-doped barrier diode detector

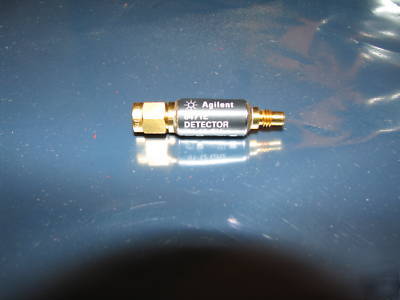

This item is a Agilent/HP 8471E Planar-Doped Barrier Diode Detector, 10 MHz to 12 GHz, STD NEG.
* Frequency Response: 0.23 dB to 4 GHz, 0.6 dB to 8 GHz, 0.85 dB to 12 GHz
* Maximum SWR: 1.2 to 4 GHz, 1.7 to 8 GHz, 2.4 to 12 GHz
* Low Level Sensitivity: > 0.5 mV/uW
* Maximum Operating Input Power: 200 mW
* Typical Short-term Maximum Input Power (< 1 minute): 0.7 W
* Output Polarity: Negative
* Input Connector: SMA male
* Output Connector: SMC male
