Acti cam-5301N CAM5301N ip network rohs poe camera
Manufacturer: ACTi Model/Part Number: CAM-5301N

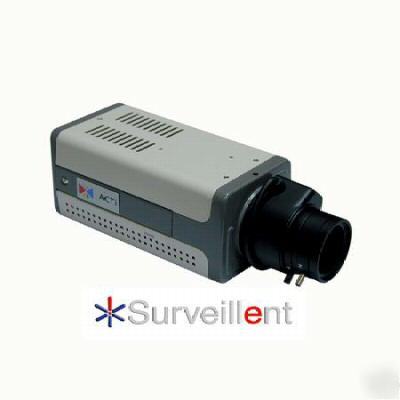

ACTi CAM-5301N CAM5301N IP Network RoHS PoE Camera
The CAM-5300 series (which includes the CAM-5300N, CAM-5301N, CAM-5320N, CAM-5321N and the CAM-5322N) MPEG-4 IP cameras adopts MPEG-4 Advanced Simple Profile (ASP) compliant compression technology to perform full D1 (4 CIF) resolution. It utilizes the premium 1/3" SONY color CCD sensor, and has horizontal resolution of 480 TV lines. The real-time image transmission is 30 fps (720 x 480 pixels, NTSC) and 25 fps (720 x 576 pixels, PAL).
With the LAN and WAN ports built-in, the CAM-5300 series applies QoS (Quality of Service, IEEE 802.1Q) technology to fully utilize the network bandwidth. CAM-5300 series supports automatic (or manual) frame rate control for concurrent video streams accessing at different network bandwidth. With advanced MPEG-4 ASP compliant video compression and QoS-enabled streaming, the CAM-5300 series delivers smooth analog-video like transmission over LAN or WAN to reach true remote video surveillance goal. The CAM-5300 series not only supports DDNS, but also has a built-in web server to enable authorized users to do live viewing and adjust the camera setting via remote web browsers.
In addition to support of the DC and a video auto iris lens, the CAM-5300 series also has DIP-switch controlled functions including backlight compensation, auto white balance, auto gain control and flickerless for different application conditions. With Super Gain Control mechanism, it will switch to color and monochrome picture automatically available on the CAM-5320 only.
1/3" SONY Super HAD / Exview HAD with 470K/410K pixels
1/3" SONY Super HAD / EXviewHAD with 470K/410K pixels (CAM-5320)
Power Over Ethernet (IEEE 802.3af) supported (CAM-5301/CAM-5321) or AC 24 V power source supported (CAM-5322)
