Spirent vdsl production DLS6500 tester

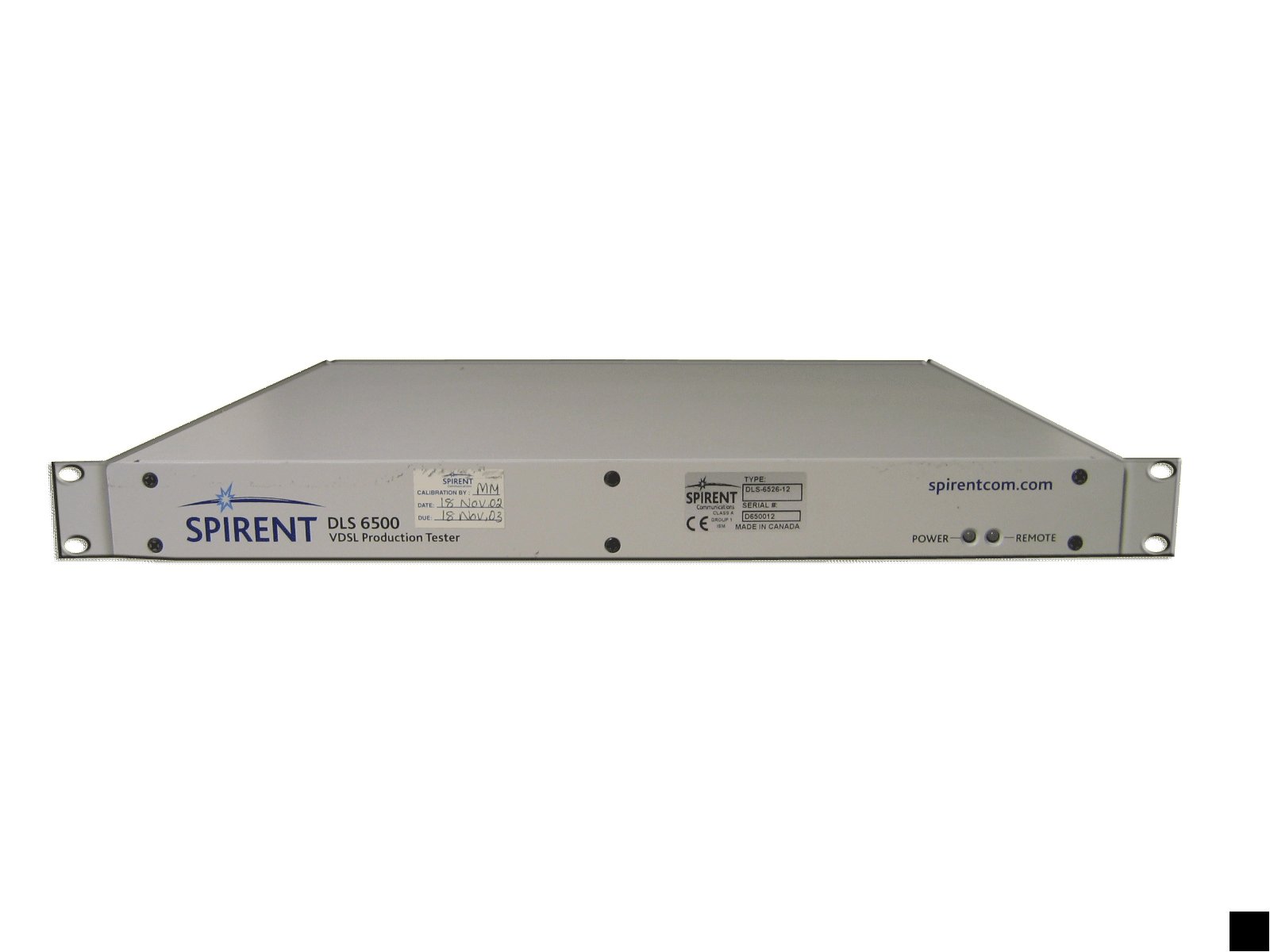

Spirent VDSL Production DLS6500 Tester
The Spirent DLS 6500 series was designed as a low cost solution to test VDSL DSLAM, multiple port Ethernet First Mile-Copper (EFM-Copper IEEE802.3ah) access systems or other wide bandwidth access equipment requiring simulation of North American (ANSI) and European (ETSI) copper lines within a manufacturing test environment. The DLS 6500 series simulates attenuation (insertion loss) and return loss up to 24 copper lines of either 26 AWG (DLS -6526) or TP100 (DLS-6510) . The DLS 6500 has a compact 1U 19 inch rack mountable form factor, allowing up to 96 VDSL DSLAM ports to be tested in less than 4U, a major advantage in space constrained production test stations. Remote user control of the DLS 6500 is achieved allows for a Spirent provided GUI or remote computer based automated testing.
* Powerful CPU for router protocol stress testing
* 32,000 tracked QoS streams per port*
* Over 2,000 BGP emulated nodes per port
* Multirate interface for OC-3/12/48 testing from one interface
* Enhanced support for IPv6 data plane and control plane testing
* Protocol conformance testing
* Tcl automation package Power, Performance, and Scalability
