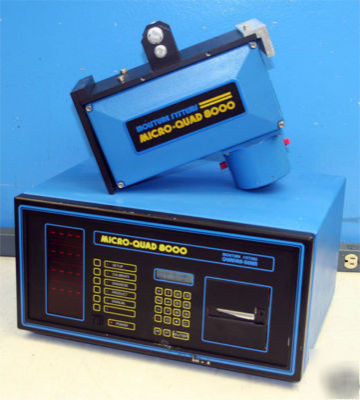

Moisture Systems Corporation Micro-Quad 8000 Infrared Analyzer
100/120/220/240, 50/60 Hz, 250 Watts Max
Used, removed from service, powers up nicely
The Micro-Quad is used to measure many constituents in addition to moisture. Range of analysis is a function of the product, the constituent to be measured, and operating parameters.
The Micro-Quad 8000 on-line analyzer supplies instantaneous and continuous information on the content of many key product constituents, and makes this information immediately available to the person, or computer controlling the production process.
* NIR Illumination: Quartz halogen lamp; mean time between failure exceeds 5 years
* Accuracy: 0.005 of full scale range
* Stability: Semi-annual calibration
* Sensor to Sample Distance: 10 to 36 cm (4 to 14 inches) standard Other ranges optionally available
* Dimensions: Sensor - 30.5 cm x 18.1 cm x 15.7 cm (1 2" x 7.1"x 6.2"), Processor - 50 cm x 26 cm x 40 cm (1 9.75" x 10.25" x 15.75")
* Weight: Sensor - 7 kg (1 5.5 lb.) Processor - 18 kg (40 lb.)
* Operating Temperature: 0 Celsius to 50*Celsius
* Instrument Output: Analog output - 0-1 0V, 0-100 my, 4-20 mA, Digital output - LED display, 4 digits 18 mm high (0.7") ranged by application, Data transmission output - RS232C, RS485 Up to 16 contacts rated at 5 amps at 11 0V (2.5 amps at 240V optional
* User Interface: Weight or volume quantity in user specified units (%, ppm, grams per square meter, depth, etc.) Optional - Minimum, maximum, average, running average, Standard Deviation, Relative Standard Deviation, meterage
* Constituent Range: Minimum 0.0 to 0. 1 % Maximum 0.0 to 9 5% Any range between 0. 1 and 95%
* Repeatability: 0.002 of full scale range
* Storage Temperature: 20 Celsius to 60*Celsius
* Sensor to Processor Distance: 1,000 meters (3,220 feet) Performance is not affected by cable length
* Power Requirements: 90/100/1 20/220/240 Volts +/- 10%, 50/60 Hz +/- 10%, 260 Watts maximum (Sensor power is supplied by the Processor)
