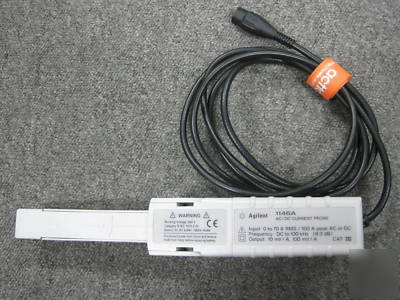

HP/Agilent 1146A 100 kHz /100A AC/DC Current Probe
This AC/DC current probe provides accurate display and measurement of currents from 100 mA to 100 A rms, dc to 100 kHz, without breaking the circuit. The Agilent 1146A uses Hall-effect technology to measure ac and dc signals. It is compatible with all Agilent oscilloscopes and any scope with 0.2 to 0.5 V/div sensitivity, a minimum input impedance of 1 M and a BNC input.
Frequency range: DC to 100 kHz (-3dB with current derating)
Current range, 1 mV/A: 100 mA to 10 A peak 10 mV/A: 1 to 100 A peak 10 mV/A ac/dc: 1000 mV peak
AC current accuracy, 100 mV/A (50 mV to 10 A peak) - 3% of reading 50 mA 10 mV/A (500 mA to 40 A peak) - 4% of reading 50 mA 10 mV/A (40 A to 100 A peak) - 15% max at 100 A
