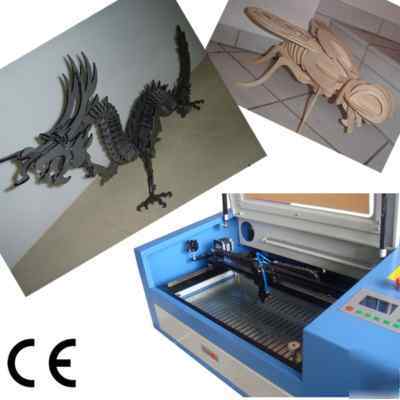

CO2 laser engraving cutting machine engraver/50W/ 6040H
TRIUMPH LASER ENGRAVING MACHINE
Memory: 40M flash memory in the machine
Work Area:380 X 580mm (15"X22.8")
Laser Tube Type: CO2 Glass Tube
Resolution: User controlled from 100 to 1000DPI
Supported software: coreldraw, autocad
Supported Image Formats: AI,DXF,BMP,GIF,JPG,PNG,MNG,TIF,TGA,PCX,JBG,JP2,JPC,PGX,RAS,PNM,SKA,RAW,PLT,DST,DSB
Machine Dimension: 1060X730X540 mm (41.7 "X28.7"X21.2")
Packing Size: 1190X890X620mm (46.9"X35.0"X24.4")
Gross Weight: 120KGS (264.5lb)
Power Requirements: AC220V (or110V) 10% 50/60HZ
CUTTING DEPTH OF SOME MATERIALS
Acrylic 10mm(0.39") Plywood 5mm(0.2") MDF 5mm(0.2")
"*"means you have to use a spray called "thermark" to spray the surface of the material and then you can mark on it. Here is the website for your reference: http://
TWO Year limited warranty on mechanical parts.
90-day limited warranty on electrical and electronic parts
Click here to download User manual of software:Download PHCADmanual .pdf
Click here to download software to view the functions:Download PHCad.rar
Engravable Area and Wattage Specification Table:
Rotary attachment: used to engrave on round items
How to engrave a photo easily:
Engraving and cutting samples:
Black Painted Acrylic Engraving "Beauty"
Corian Engraving "Aztec Calendar"
Wood Engraving And Cutting "Box"
Freight depends on different countries.
