Atn / maury NP5 noise parameter measuring sys. .3-6GHZ
ATN / Maury NP5 Noise Parameter
The Maury Electronic Tuner System (ETS), NP5 Series Noise Parameter Measuring System is a solid-state tunerbased solution for complete small-signal characterization of RF and microwave semiconductor devices. From highgain transistors
with noise figures >1dB to millimeterwave low-noise amplifiers, the Maury NP5 Series can handle the most challenging assignments.
When combined with an Agilent vector network analyzer and an Agilent NFA series noise figure analyzer, the NP5 Series provides fast and accurate s-parameter, noise parameter, and device characterization versus bias measurements and analysis from 300 MHz to 40 GHz.
The noise parameter measurement software controls the system hardware, including power supplies for DC bias, and wafer probe stations (not included with the systems). Full test plans can be generated, and complex measurement sequences can be stored using the powerful built-in macro utility. Graphical and tabular report generation and data transfer to external electronic design automation (EDA) programs is fast and easy.
For more information: http:// /datasheets/4T-080.pdf

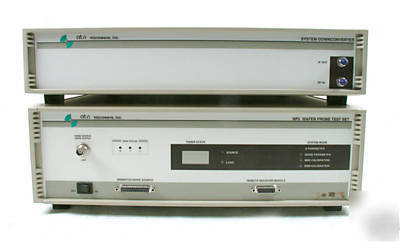

* NP5B Wafer Probe Test SEt .3-6 GHz
* System Downconverter Opt D.C. .3-6.0 GHz
* MNS-5 Mismatch Noise Source .3-6 GHz
* RRM-5 Remote Receiver Module .3-6 GHz
* No cables, manuals, software or other accessories included.
* Only testing done was powering on the NP5 test set, and visually inspecting the RF Connectors which are in excellent Condition.
* Overall condition is good, see photos.
