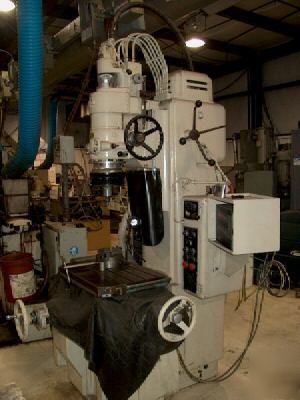

#3 moore jig grinder #24037
New 1960, Serial No. G168, Model 3,
Grinding Capacity, Range................. 1/64" to 5"
Table Working Surface, W x L............. 11" x 24"
Table Longitudinal Travel (X-Axis)....... 18"
Saddle Cross Travel (Y-Axis)............. 11"
Spindle-Housing Vertical Travel.......... 12.625"
Spindle Vertical Travel.................. 3.625"
Table-Top to Wheel Collet, Minimum....... 2"
Table-Top to Wheel Collet, Maximum....... 18"
Spindle-Center to Column Ways............ 10"
Spindle-Center to Column Below Ways...... 13.5"
Spindle Speeds, Main Spindle............. 40 to 250 RPM
Floor Space Required, W x D.............. 5'9" x 7'
Weight, Approximately.................... 3700 LBS
