Angle plate step toolmaker moore machinist 1/4"X20 jd#2

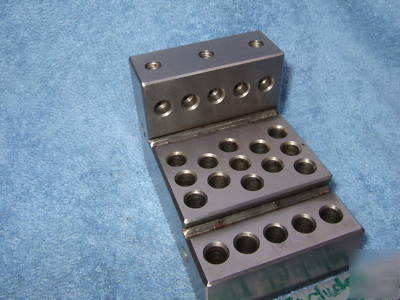

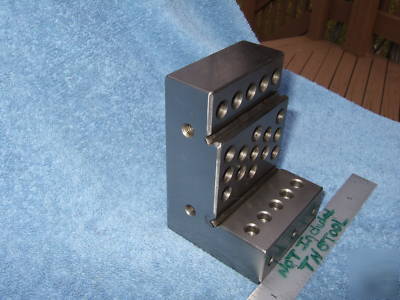

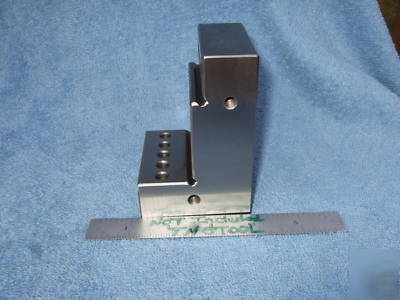

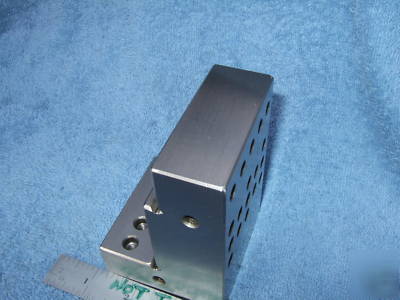

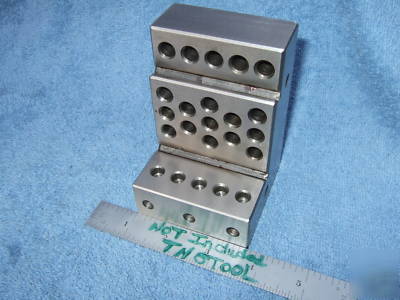

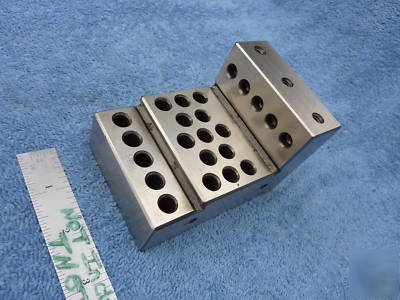

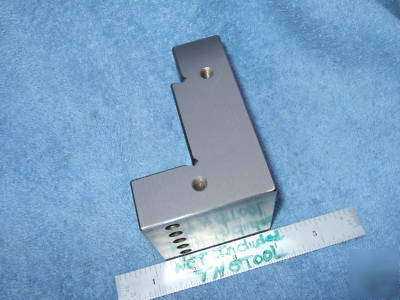

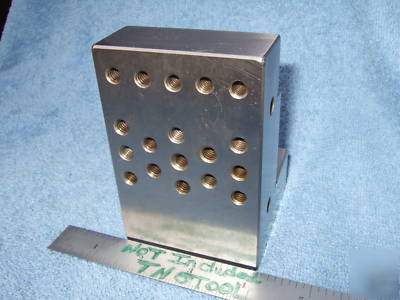

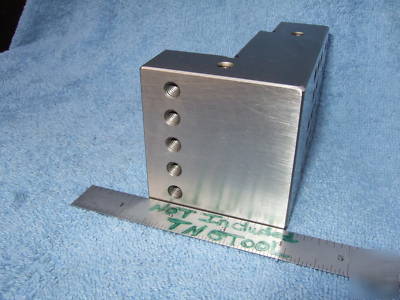

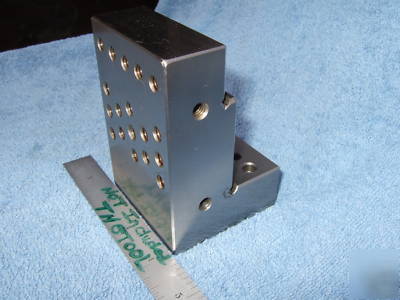

ANGLE PLATE (1) STEPPED MADE OF HARDENED AND PRECISION GROUND TOOL STEEL BY AMERICAN TOOLMAKER NOW RETIRED FROM THE MOORE JIG-GRINDER HE OPERATED.. THIS SIZE OF AN ANGLE PLATE IS USED BY WATCHMAKERS, MACHINIST AND TOOLMAKERS ALIKE. PLATE IS IN VERY GOOD PRECISION GROUND CONDITION AS SHOWN IN 12 SUPER-SIZE PICTURES. PLEASE TAKE A MINUTE TO LOOK AND OR ZOOM PICTURES ALL 12 WORK!!!!!

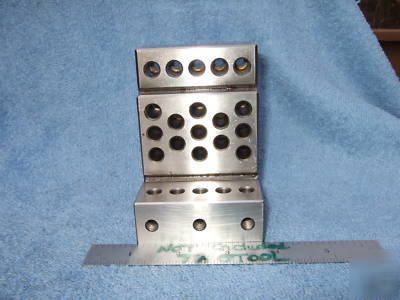

ANGLE PLATE FRESHLY GROUND AND NEVER USED SINCE MADE!! PLATE MEASURES 2.704" WIDE X 3.978" LEG x 2.683" TALL WITH NO DAMAGE BUT MINOR MARKS FROM STORAGE AS SHOWN. ANGLE BLOCK HAS (30) TAPPED HOLES 1/4" X 20 MOST COUNTER-BORED 5/16" OR 9/32" ON INSIDE FACE . STEP MEASURES .260" DEEP AND .971" FROM TOP DOWN. TOOLMAKER SAID THIS PLATE WAS MADE FROM "S-7" AIR HARD TOOL STEEL THEN PRECISION GROUND AFTER HEAT-TREATING. LEGS ARE 1.406" AND 1.147" AND 1.044 THICK!!
