Agilent hp 8591A 1.8 ghz spectrum analyzer 1 11 023 301

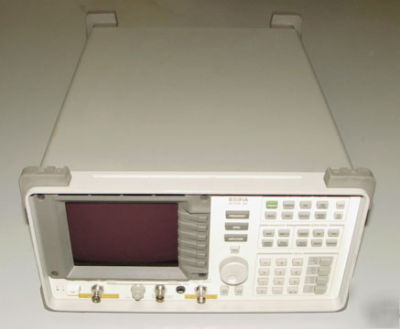

HP\Agilent 8591A 1.8 GHz Spectrum Analyzer 1,11,21,301
The 8591A Spectrum Analyzer covers the range from 1 MHz to 1.8 GHz with a center frequency accuracy of 210 Hz at 1 GHz. Over 100 functions are controlled either from the front panel or over the optional HP-IB interface. Advanced marker functions measure: the 99% power bandwidth of a signal; the 3 dB points of a signal; frequency; amplitude; amplitude and frequency differences on a signal; and highest peaks on a signal. The Next Peak button moves the marker to the next highest signal, simplifying harmonic measurements. Other measurement functions include: percentage AM; signal-to-noise ratio; and the FFT. Store/recall up to nine complete front-panel states in battery-backed RAM.
* Frequency Range: 1 MHz to 1.8 GHz
* Frequency Span Range: 0 Hz (zero span), 10 kHz to 1.8 GHz
* Amplitude Range: -63 to +75 dBmV
* 001 = 75-ohm Input Impedance
* 011 = Tracking Generator 75-ohms
* 301 = TV Sync Trigger, Fast Time Domain Sweeps & AM/FM Demodulator with speaker. This is a complete hardware solution for TV Sync, AM/FM Demodulation, and Fast Time Domain Sweeps
