New 40W CO2 laser engraver engraving machine aip-E40W2C

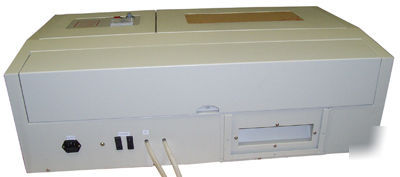

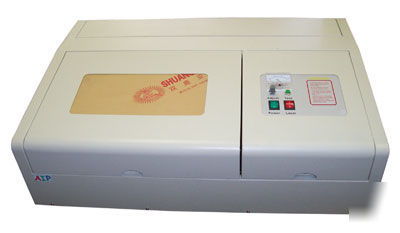

Brand New 40W CO2 Laser Engraver
This affordable equipment can engrave on rubber, plastic, acrylic, lamacoids, wood, leather, glass and many other materials that are not very hard. It can also cut these softer materials to certain thickness depending on material. For metal materials, it can engrave on them if they are coated with laser marking material (such as TherMark) or paint. This machine can be used for many commercial applications such as making signs, stamps, corporate seals, prototype models, name plates, badges, artifacts, crafts, gifts, etc.

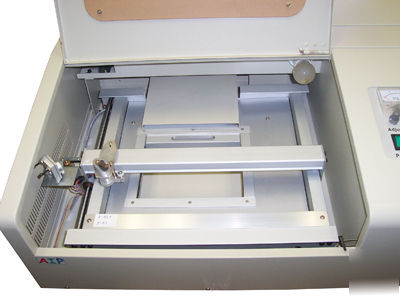

* Max. workspace dimension (for thin material): 14" x 9"
* Max. dimension for clamp area fit (for thick material): 7.5" x 4" x 2 3/4"
* Max. engraving size: 12" x 8"
* Driving system: stepper motor
* Cooling mode: water-cooling (for cooling the laser tube)
* Max. carving speed: 11"/second (280 mm/second)
* Laser tube life: 1,500 hours max.
* Precision: 0.025mm or 1,000dpi
* Min. shaping English characters: 1 mm
* Safety switch to turn off laser power when cover is open
* Operating system: Windows 98/2000/XP
* Communication interface: parallel port (must be directly connected to the motherboard)
* Controlling software: MoshiDraw V.6
* File formats supported by MoshiDraw: PLT, BMP, JPG, etc.
* Electric: 110VAC, 15A, 300W
* Operating temperature: 0 - 45 C
* Package size: 39 x 27 x 17" for machine, plus 17 X 10 x 10" for parts
* Package weight: 86 lbs for machine, 9 lbs for parts.
* Centronics Parallel cable x 1
* USB Key x 1 (for using MoshiDraw software)
* Our warranty coverage for this item is one year from the date you received the product, labor and parts.
