Mini-circuits zfsc-4-1 power splitter 4 way 1-1000 mhz

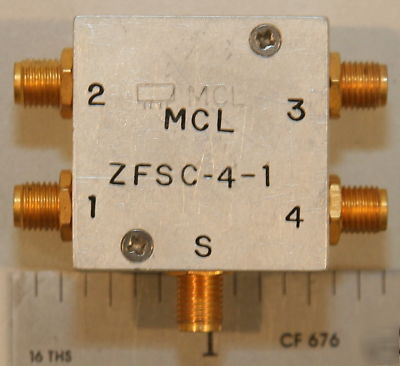

Mini-Circuits ZFSC-4-1 Power Splitter/Combiner
Mini-Circuits ZFSC-4-1 Specifications:
* Frequency Range: 1-1000 MHz
* Low Range [Fq-low to 10 Fq-low]: 25 Typ., 20 Min.
* Mid Range [10 Fq-low to Fq-up/2]: 23 Typ., 18 Min.
* High Range [Fq-up/2 to Fq-up]: 20 Typ., 15 Min.
* Low Range [Fq-low to 10 Fq-low]: 0.4 Typ., 1.2 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.6 Typ., 1.5 Max.
* High Range [Fq-up/2 to Fq-up]: 1.6 Typ., 2.5 Max.
* Low Range [Fq-low to 10 Fq-low]: 4 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 8 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.4 Max.
* High Range [Fq-up/2 to Fq-up]: 0.7 Max.
Mini-Circuits ZFSC-4-1 Data Sheet
