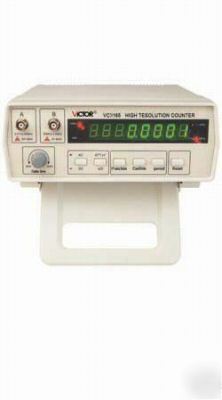

VC3165 2.4GHZ multifunction frequency counter
It is a high-resolution multifunction intelligent frequency counter based on microprocessor.
Features include frequency, period and equal-precision measuring. Also, 3 step function selection,
work state, unit and eight-digit LED display. All function depend on a single CPU. A crystal controlled
temperature circuit provides constant compensation for temperature change thereby reducing measurement
errors typically caused by temperature drift. The CH.B input has an attenuator(X1,X20), &AC/DC coupling for
The instrument measures signals over a wide range from 0.01Hz to 2.4GHz. The gate time is continuously
The instrument provides high performance stability, & function at a low cost.
Note: Read this chapter carefully before using your instrument retain these instructions.
1) 8-digit LED display, clear reading
2) Selective range, high stability
3) Frequency measurement: 0.01Hz ~2.4GHz
4) Cyclic measurement range: 0.5nS~10S
5) Gate adjustment range: 100mS~10S continuous adjustable
