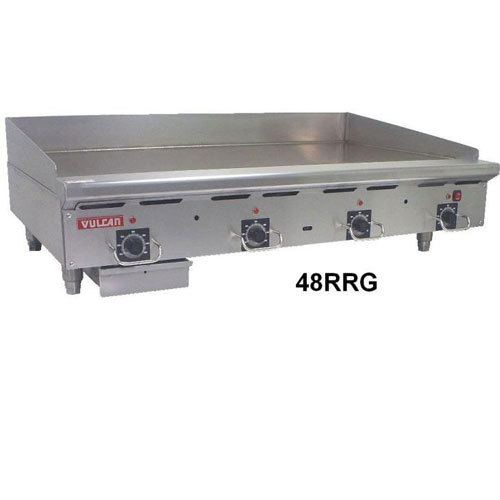

Vulcan 48RRG griddle, countertop, tas, 48" wide x 24" d
Griddle, Countertop, Tas, 48" Wide x 24" Deep, (27,500 BTU Every 12"), 3/4" Griddle Plate, Solid State Thermostat, Electronic Spark Ignition and Pilot Protection
Heavy Duty Gas Griddle, 110,000 BTU, 48"W x 24"D x 3/4" thick composite plate with stainless steel cooking surface, solid state thermostat every 12", electronic spark ignition & pilot protection, wire knob guards, countertop, low profile, stainless steel front, sides, front top ledge, front grease trough, grease can, heavy gauge 4" back & tapered side splashes, 4" adjustable legs, CSA, NSF, EnergyStar
* Stainless steel front, sides and 4 front top ledge.
* Fully welded stainless and aluminized steel chassis frame.
* 11 low profile cooking height on 4 adjustable legs.
* 3/4 composite griddle plate with stainless steel cooking surface.
* Top and bottom plate seam welded.
* 4 backsplash with tapered side splashes.
* One 27,500 BTU/hr. U shaped burner for every 12 of griddle width.
* One solid state thermostat with embedded thermocouple for each burner.
* Temperature adjust from 150 to 450 F.
* Electronic ignition with pilot safety system.
* 3 wide stainless steel front grease trough.
* Large capacity 6? wide x 30 deep x 2 high Stainless steel grease drawer.
* rear gas connection and gas pressure regulator.
* 120V 50/60Hz 1 Amp single phase with NEMA 5?15 USA plug.
* 36RRG, 48RRG and 60RRG models are Energy Star rated.
