> New honeywell M9194E 24V 300"# modutrol iv motor w/aux-
New honeywell M9194E 24V 300"# modutrol iv motor w/aux-

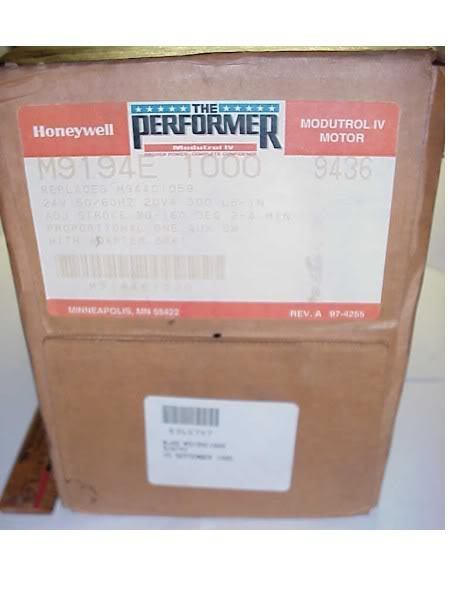

HONEYWELL M9194E 1000 24V 300 INCH POUND TORQUE MODUTROL IV MOTOR W/AUX SWITCH- NEW IN BOXINDUSTRIAL PROCESS SURPLUS
PLEASE SEE THE PHOTOS BELOW FOR ADDITIONAL INFORMATION.
Series 90 Modutrol IV Motors non-spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or valves.
Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard; screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available. (INCLUDED- ACCORDING TO BOX LABEL)
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.
Description Modutrol IV Motor
Fail Safe Mode Non-Spring Return
Control Signal Proportional, 135 ohm
Stroke Adjustable; 90 to 160 degrees, Symmetrical
Torque Rating (lb-in.) 300 lb-in.
External Auxiliary Switches Available Yes
Power Consumption Driving (VA) 15 VA
Electrical Connections Quick-connect terminals
Shaft Dimensions (in.) 0.375 in.
Dimensions (in.) 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Dimensions (mm) 164 mm high x 140 mm wide x 185 mm deep
Temperature Range, Ambient (F) -40 F to +150 F
Temperature Range, Ambient (C) -40 C to +60 C
Deadweight Load on Shaft (Either End) (lb) 200 lbs
. Deadweight Load (Combined on both Shafts) 300 lbs.
Nominal Timing (sec) 120-240 sec
Shaft Rotation (upon control signal increase) Clockwise (as viewed from power end) (normally closed)
Auxiliary Switch Ratings AFL - 120 Vac 7.2 A
Auxiliary Switch Ratings AFL - 240 Vac 3.6 A
Auxiliary Switch Ratings ALR- 120 Vac 43.2A
Auxiliary Switch Ratings ALR- 240 Vac 21.6 A
Approvals, Underwriters Laboratories Inc Listed File: E4436, Guide: XAPX
Approvals, Canadian Standards Association Certified: File No. LR1620, Guide No. 400-E
Approvals, CE EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
THE PICTURES IN MY ADS ARE OF THE EXACT ITEMS YOU WILL RECEIVE.
