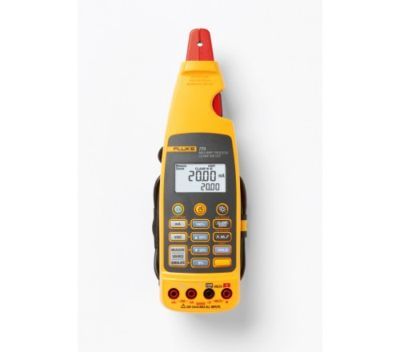

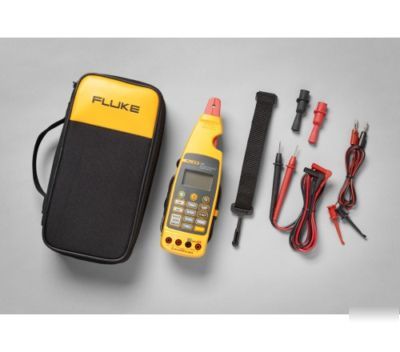

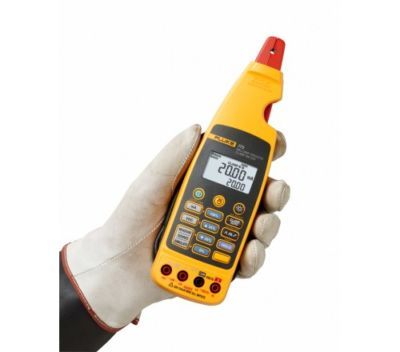

New fluke 773 milliamp process clamp meter msrp $995
If needed we can Calibrate for an additional $49.99 a $89.99 service
Don t break the loop on 4-20 mA signal measurements and save time.
If you need more time in your busy day check out the Fluke 77X mA Clamp Meters. They are designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
The 773 expands upon the capabilities of the popular 771 mA Clamp Meter by also including the following features.
* Measure 4 to 20 mA signals with in-circuit measurement
* Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
* Source 4 to 20 mA signals for testing control system I/O or I/Ps
* mA output linear ramp or 25% step output
* DC voltage measurement to verify 24V power supplies or voltage I/O signals
* Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals
* Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
* mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
* Voltage output linear ramp or 25% step output
* Best in class 0.2 % accuracy
* 0.01 mA resolution and sensitivity

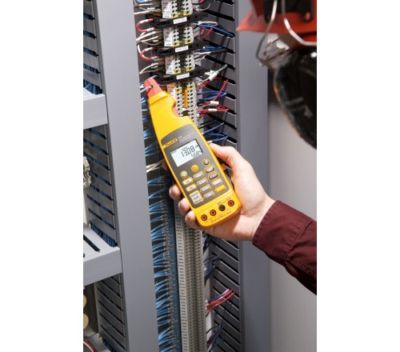

* Measure 4 to 20 mA signals without breaking the loop
* Measure mA signals for PLC and control system analog I/O
* Dual backlit display with both mA measurement and percent of 4 to 20 mA span
* Measurement Spotlight illuminates hard to see wires in dark enclosures
* Detachable clamp with extension cable for measurements in tight locations
* Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
* Automatically change the 4 to 20 mA output for remote testing
* Power saving features, auto-off, backlight timeout extend battery life
* Hold function captures and displays changing measurements
73 mm, 146 mm, 295 mm (2.875 in, 5.75 in, 11.625 in)
If you have any other questions please feel free to email me.
