K&e multi-paired line glass alignment target
Up for sale is a K&E mounted multi-paired line glass alignment target.
The target is used and shows normal use/wear on mounting ring, but no signs of abuse.
The face of the ring is lightly scribed with an inventory or lot number.
There are no sratches / defects in the glass.

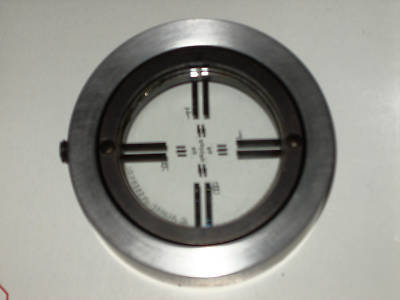

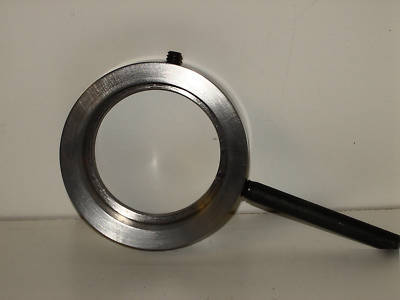

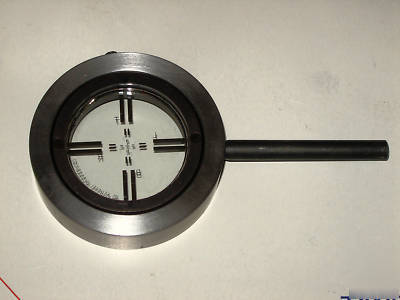

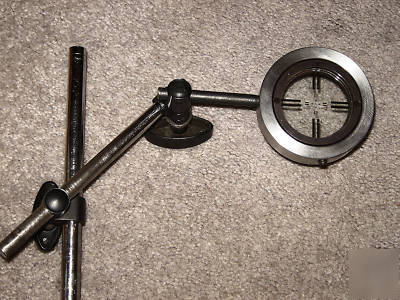

Included with the unit is a 2.8745" x .7450" steel ring with a 2.75" long rod for mounting the target in a magnetic indicator stand.
Feel free to contact me with any questions you may have.
The picture below is for reference only. Please view the posting pictures for the actual unit.

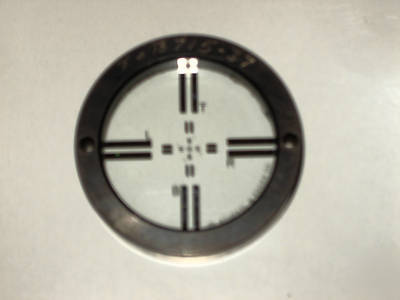

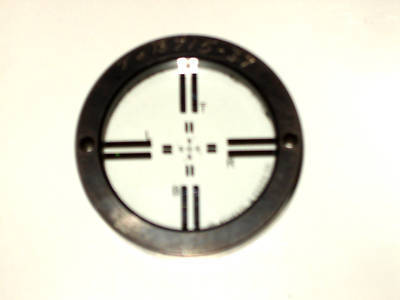

The 6110 paired-line glass target is mounted in a hardened and ground stabilized steel ring. It is centered within 0.0005" with respect to the outside diameter of the ring. It may be used in many alignment configurations, but is sized to fit standard spherical adapters.
The target conforms to A.I.A. specifications.
Steel ring: 2.2498" (+0.0000, -0.0005") dia. x " thick.
Mounting holes: 2" center-to-center, at 180 , #30 drill (.1285 dia).
