> Ultrasonic flaw detector aws block aws transducer set
Ultrasonic flaw detector aws block aws transducer set

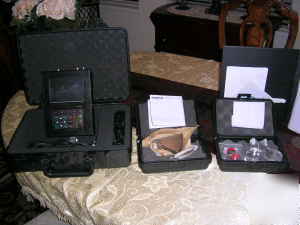

Complete set with an AWS test block, an AWS transducer and three snail wedges.
Handheld, Portable, Digital Ultrasonic Flaw Detector.
Light weight; big and clear color screen.
Extremely low noise level - little or no "grass"!

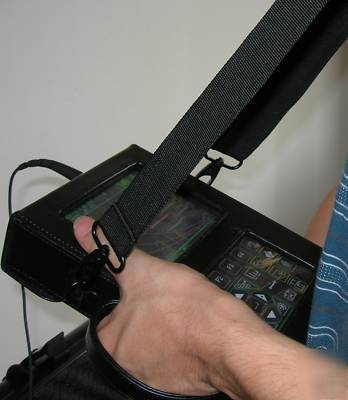

Carrying pouch for shoulder and wrist.
Easy to change and long - lasting backup battery (optional accessory).
Perfect for traveling and on-site jobs!
Big and clear LCD made with high quality material.

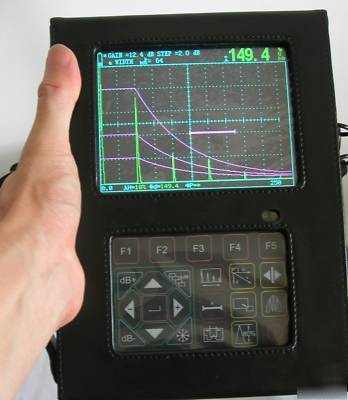

High contrast viewing of the waveform in direct sunlight.
Easy to operate menu and keyboard.
Automated making video of test process and play.
Gate and DAC alarm, Acoustic-optical alarm.
Durable and dust-proof solid metal housing (IP65).
Powerful software and reports can be export to excel.
* Automate calibration, automated gain
* Automated making video of test process and play
* High-speed capture, low noise
* Gate and DAC alarm, Acoustic Optical alarm
* Solid metal housing (IP65)
* Clear viewing of the waveform in direct sunlight
* Powerful pc software and reports can be export to excel
* Rechargeable battery is detachable - without any tool
* Automated calibration of transducer zero-point, angles, front edge and material velocity
* Automated gain and gain scan
* Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, )
* Automated switch three staff gauge ((Depth d, level p, distance s)
* Making and using DAC and AVG to evaluate the echo with ease. The curve can be modified and compensated
* Ten independence setup, any criterion can be input freely, work on site without test block
* Onboard memory: 300 A graph and 30000 thickness value
* Software can be updated online
* Li battery, continuous working hours: 7 hours
* Lock and unlock function of system parameters
* Dormancy and screen savers
* Electronic clock and calendar
* Automated make video of test process and play
* Powerful software. Reports can be exported to excel
DSC AWS 1018 steel block TB7549-1 Specifications:
Distance, sensitivity, refracted angle and beam index calibration for angle beam transducers per AWS and AASHTO requirements.
AWS Wedges and Transducers specifications:
Transducers and wedges meet or exceed the specifications as set forth by the AWS Code Section D1.1

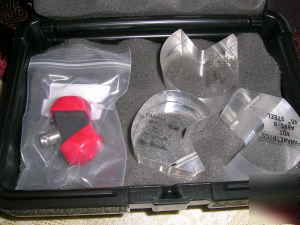

Snail wedges use industry accepted hole spacing
Captive screws included with the transducer
Accupath style wedges marked with a five line graticule to assist in locating the beam exit point

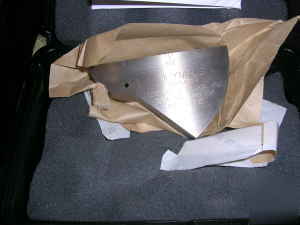

DSC AWS 1018 steel block TB7549-1
Transducer: C430-SB AWS transducer (Nominal element size 0.625 x 0.625 in, 2.25 MHz)
Communication cable and software
High quality durable carrying case
