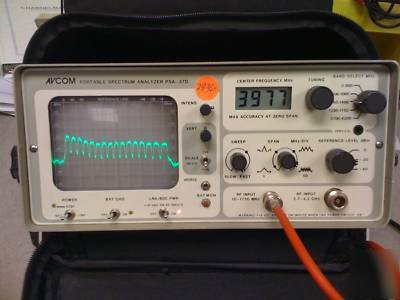

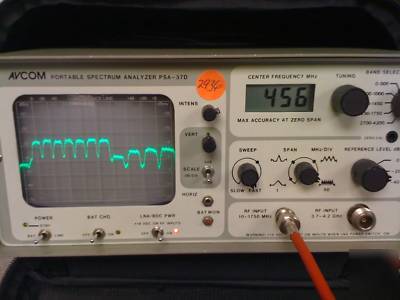

Nice avcom psa-37D portable spectrum analyzer
Thanks, for looking product info below -
PSA-37D For the Satellite and CATV Industry
* 13/18 VDC Power for LNA's & LNB's
* Internal Battery & Charger
The PSA-37D covers the whole CATV frequency range from 10 to 1000 MHz in addition to the Satellite L band from 950 to 1750 MHz. The unit has a +2 dB amplitude accuracy which makes this the perfect analyzer for the field technician or for testing and setting headend levels. The variable span width makes it easy to either look at the whole band or pinpoint a particular frequency/channel.
Battery power (and a built in charger) lets you work right at the antenna; no need for extension cords. You can also run or charge on vehicle or line power. THE PSA-37D has a bulit in DC Block with +13/18 VDC for powering LNAs and LNBs.
Satellite Dish Alignment a Snap!
If you are doing DBS installs, you need to be on and off the job fast! DBS signals such as DISH NETWORK, and DIRECT-TV can be seen with Avcom's PSA-37D. Normal DBS antenna alignments, such as roof, wall, or backyard can be accomplished in seconds because the DBS receiver and TV monitor do not have to be at the antenna.
Creative Installations Made Easy
The PSA-37D can really help with more creative DBS dish installations inside buildings, looking through sparse foliage or windows, smaller antennas, etc. When the signal is not optimum, using the PSA-37D, the signal can be quickly located and measured even though it is below the receiver
