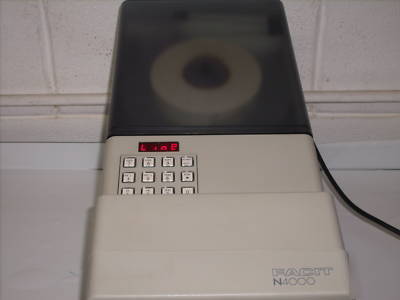

Facit N4000 tape reader
The two-way handshaking communication is optimized by a buffer with a capacity of more than 9,000 characters. Punching is performed at a speed of 30, 60 or 75 characters per second and reading at 200 or 500 characters per second. Both punching and reading speed can be selected from the keyboard.
The rugged, low-cost Facit N4000 comes from the same company that gave you NC-tape reliability with the Facit 4070 Tape Punch. Now more than 100,000 installations have set NC-industry standards.
Two RS232c ports, IBM Compatible, CNC Compatible, "Read-After-Punch" Feature, 75
N4000 Punching speed - Max 75 characters per second with Read-After-Punch verification feature
N4000 Reading speed - Max 500 characters per second, optical
Tape widths - 5-8 channels: 25.4 mm (1 inch)
Type of Tape - Un-oiled paper tape or Mylar
Tape Material - Any tape with a transmissibility of up to 60%
Interfaces - Two serial interfaces. V24/RS-232C, Transmission speed from 110 to 9600 Baud, TTY Current Loop available as option (5165)
Input Buffer - Approximately 9000 character buffer sharable between the two channels
Protocols - Ready/Busy and XON/XOFF (DC1/DC3)
Start/Stop-Codes - DC1/DC3 - reading and DC2/DC4 punching
Code Conversion - ASCII/ISO/EIA and Random (transparent) code, Telex-code (5 channels)
Supply Voltages - 100/115/220/240 V switch-able+15%-10%
Power Consumption - Maximum 200 Watts
Width/Depth/Height/Weight - 8.62" X 20.5" X 7.88" 29 lbs
