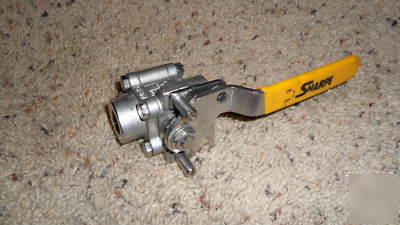

Sharpe series 99 3/8" stainless steel ball valve
Series 99 High Performance 3 Piece Full Port Ball Valves
High cycle stem packing, encapsulated body seal allows
Valve to be welded in line without disassembly
Live loaded stem, 4 Belleville Washers
Socket Weld & butt weld, Stainless Steel 316 L
In-line serviceable swing-out center section allows easy access to internal valve components without disturbing alignment of pipe. Functions as both valve and union.
Self adjusts with pressure and temperature fluctuations. Blow-out proof anti-static design helps prevent accidents and injuries.
PEEK and Nova* thrust bearings and stem seals extend valve cycle life over conventional ball valves and are the best choice for actuation.
Allows valve ends to be welded in line without disassembly, saving costly labor time. Also prevents seal ruptures in high pressure or steam applications.
Ideal for actuation. Centering lip feature assures precise alignment of bracket, stem and coupler. Actuators may be retofitted on existing Series 99 without disruption of line integrity. Allows for secondary containment unit to be added when necessary.
All Sharpe Series 99 Valves meet OSHA standards with locking device. Keeps valves from being opened or closed accidentally.
Relief slots help equalize body pressure, reduce torque and assure leak-tight sealing. Seats also provide a wiping action that cleans ball and seats each time valve is cycled.
A wide variety of seat and seal materials are readily available for the most demanding applications, including Buna, Delrin, Nova*, PEEK, EPDM, Viton , TFE, RTFE, TFM , Garfoil, and UHMWPE.
A wide choice of optional end connections are available including, but not limited to threaded ends, socket weld ends, butt weld ends, flush bottom tank pads, flanged ends.
Precision engineered solid stainless steel ball with relief hole in stem slot prevents build up of cavity pressure while valve is in open posistion. Bi-directional floating ball seats downstream reduce torque and guarantee a bubble-tight shut off.
Heavy duty stainless steel bolting is protected from outside enviroment assuring valve integrity.
Heat numbers are provided on all valve bodies and ends. CMTR's (certified mill test reports) are available upon request.
* Carbon and Graphite Filled TFE
*** TFM is a trademark of DYNEON, LLC.
