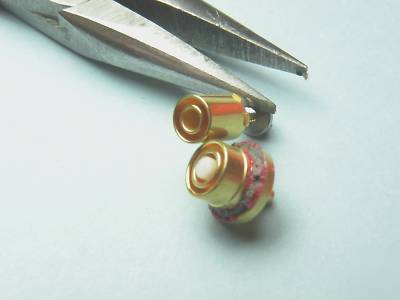

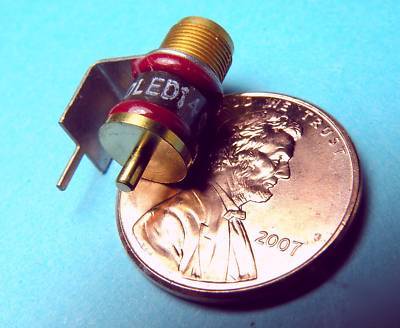

Precision variable cap 0.8-14PF vhf uhf gigahertz
* Gold-plated for high-Q and stability at high frequencies
* Useful for precision applications from DC to 1.5 GigiHertz
* Extremely precise adjustment with ten full linear turns
* Extreme stability under shock and vibration
* Commonly used to tune RF amplifiers, crystal oscillators, etc
Link for detailed specifications(Refer to ED14, dimensions in Figure 9):
http://www.dempan.co.jp/pdf/vol/trimmers_air/trimmer_air.pdf
The best type of trimmer for precision high-frequency applications, such as transmitters, receivers, tuned circuits, RF amplifiers, fine-tuned crystal oscillators, etc.
