Opto 22 G4B2 brick 8 channel analog optomux i/o G4 DA4


OPTO 22 G4B2 BRICK 8 CHANNEL ANALOG OPTOMUX I/O MODULES.
NEW ITEM WITH ORIGINAL BOX!!!!!!! 30 DAYS WARRANTY!!!!!

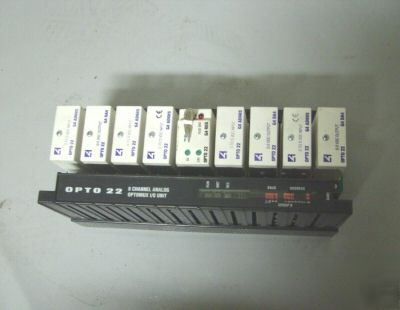

DESCRIPTION: BRICK 8 CHANNEL ANALOG OPTOMUX

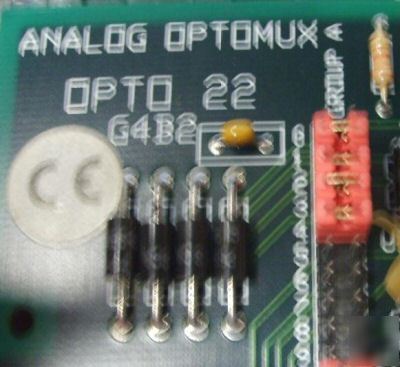

BRAIN BOARD: ANALOG OPTOMUX G4B2

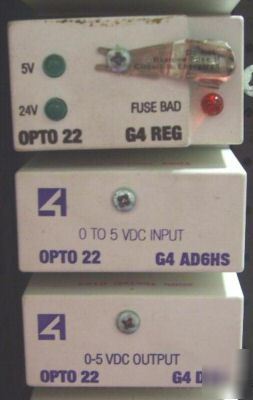

5 MODULES: 0 TO 5 VDC INPUT G4 AD6HS
3 MODULES: 0-5 VDC OUTPUT G4 DA4
Opto 22's B2 brain board The B2 Analogue Optomux brain board is an intelligent analog controller that operates as a slave device to a host computer.
Each B2 brain board contains a microprocessor that provides the necessary intelligence to carry out serial communications with a host computer and also perform control functions at each channel of I/O. The B2 brain boards are designed to mount onto any Opto 22 standard analogue I/O mounting rack.
Communication with a host computer is via an RS-422/485 serial link composed of a dual twisted pair cable that connects to each Optomux station. The serial data link operates at selectable baud rates from 300 to 38.4k baud. Optomux stations can be configured for either multi-drop or repeat mode operation. In multi-drop mode, up to 100 Optomux stations can be networked over a total line length of up to 5,000 feet. In repeat mode operation, up to 256 Optomux stations can be networked with up to 5,000 feet between stations.
The B2 mounts on Opto 22 I/O racks with header connectors; racks are available that accept Standard G1 analog I/O modules. The B2 uses the Optomux protocol.
Opto 22's B200 brain board is an intelligent processor that operates as a slave device to a host computer, via an RS422/485 serial link, to control digital I/O modules. The B200 mounts on Opto 22 I/O racks with header connectors; racks are available for G1 Analog I/O modules. The B200 uses the Mistic protocol.
When combined with an analog I/O mounting rack, the B2 brain board can perform the following functions:
* Gain and Offset Calculations
* Output Waveform Generation
