#10144 - intersource continuous chip processing system
INTERSOURCE CONTINUOUS AUTOMATIC CHIP PROCESSING SYSTEM WITH PNEUMATIC DISCHARGE

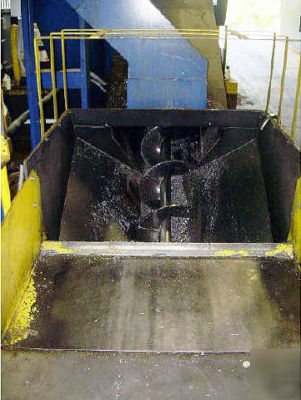

Batch processing is possible by allowing chips to accumulate in receiving hopper while screw conveyor delivers a positive metered feed over a wide range of material and chip configurations.
Parts separator with M2-4836 15Hp shredder
A high percentage of parts, bar ends and tooling are recovered from chips before processing.
30 inch continuous design provides maximum efficiency and reliability in oil recovery, reducing oil cost, waste and environmental problems. The result is the dryest, cleanest chips possible.

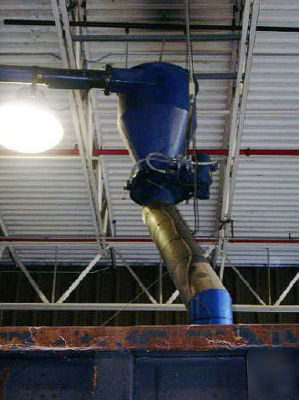

Dry chips are conveyed from the wringer through the plant to holding containers remotely located from the system. Dry chip pneumatic conveying force is created by the chip wringer; no additional blowers or compressors are required.
Oil collection tank with chain sludge conveyor
Acts as primary filter by allowing recovered oil to accumulate while sediment settles to tank bottom and is conveyored out.

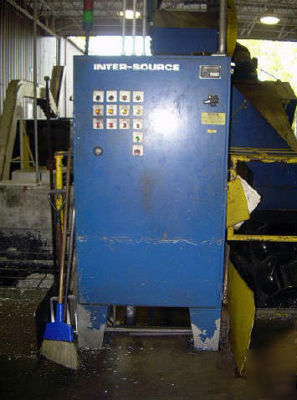

Fully programmable controller provides sequential start ip, inter-lock safety features and component status monitoring, cutter hammer PLC.
20 HP chip wringer main motor 230/460
