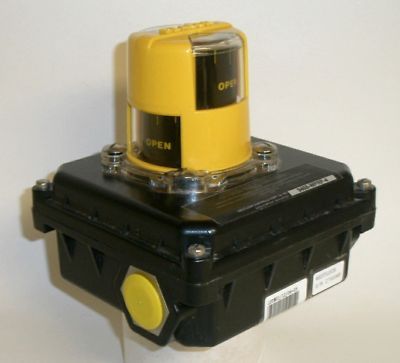

New westclock accutrak 1/4 turn accuator w/ beacon ~ ~
The Westlock Beacon provides single, visual valve position monitoring that can be viewed from up to 150 feet in any direction and can indicate a wide variety of flow paths. Features and Benefits
Manufactured from high impact strength, corrosion resistant, clear co-polyester.
Helps increase safety for plant personnel.
Offers instant visual recognition of valve position from all vantage points up to 150 feet.
Provides a concrete measure of valve performance.
Monitors valve position while visually displaying flow path.
Eliminates guesswork and reduces costs at system start-up.
Offers positive mechanical monitoring of multiport control valves.
-Tensile Strength @ Break psi 7,600
-Heat Deflection Temperature 151
AccuTrak Rotary Position Monitors
-High performance engineered resin enclosure with clear cover option or powder coated low copper content aluminum enclosure.
-316 stainless steel enclosure available as an option.
-Prewired terminal blocks are numbered and color-coded.
-Position limit sensing via Magnum hermetically sealed proximity sensors or MagPAC hermetically sealed proximity sensor encapsulated module.
-Resistive or current (4-20 mA) analog position sensing option with RS or CS transmitters.
-An impact and corrosion resistant valve position Beacon visual indicator.
-Touchset cams are fastened to a splined shaft and can be set by hand in seconds.
