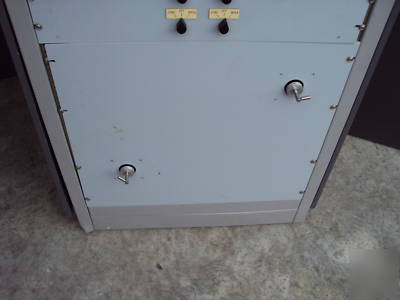

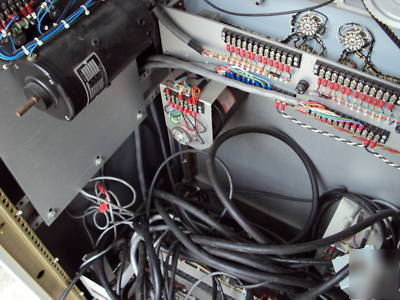

Mte series 4000 type 4036 16MM /35MM dubber 3 motor
MTE series 4000 model: 4036 16mm/35mm Film dubber
additional info from MTE: http://magna-tech.com/mte4000.html
* Local Operation at Sync Speed and 2X
* 2000' or 3000' Reel Capacity
* Local and remote advance and retard of individual films for interlock
* 24/25 or optional 30 FPS speed selection
* Fast wind and rewind outside of sprocket
* Automatic torque motor cutoff
* Interchangeable long life plug in head assemblies for all track configurations of
* Interlock to video using SMPTE/EBU edit time code and MTE "Mult-Lok II"
ALL FUNCTIONS AT THE TOUCH OF A FINGER

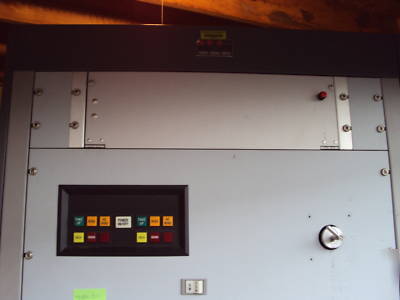

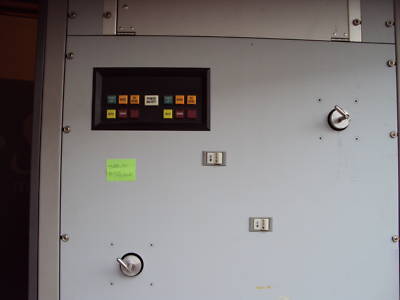

Local motion controls, Offset reset to return track to original sync position, one frame per second advance or retard of film in interlock, Advance/retard and offset reset, may be remoted to mixing console, Four interlock bus selector for studio or machine delegation, 16mm or 35mm film speed selector with automatic equalization change in playback and record amplifier, Sync or 2x speed selector forward/reverse in local mode, 24/25 frame selector, Local and interlock selector, Main power for transport, Sprocket declutch from drive for start mark alignment, For running sound effects loops, operates only in forward run.

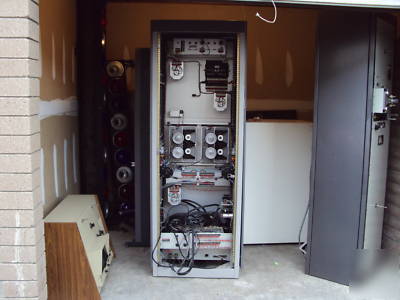

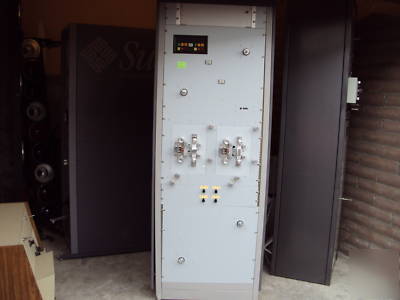

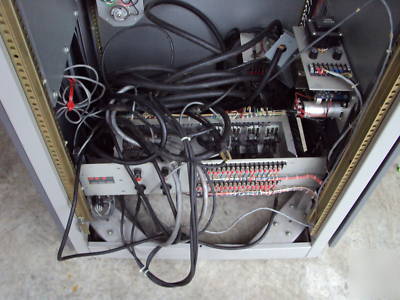

The 4000 Series Dubber is designed to play back 16mm, 17.5 mm or 35mm (depending on the model) magnetic film for studio re-recording. The cabinet contains a complete electrically and mechanically Dubbers. It is built on a common panel with the film feeding from side to side. Additional units can be added for multiple installation. One of the transports could be equipped for recording. The sprocket is driven by a stepping motor and can be operated independently or in interlock. The reel spindles are directly driven by torque motors.

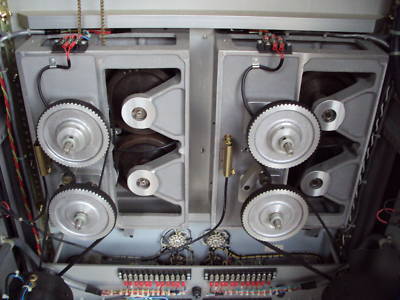

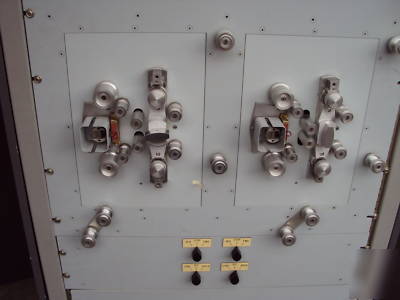

The film transport is mounted on an aluminum alloy plate 3/8" thick, stress relieved and precision ground. The mechanism employs a double flywheel flutter suppressor system and a single film sprocket. Sound drums, rollers and shafts are precision machined from non-magnetic stainless steel. Ball bearings used are of the selected stainless steel type. A quartz precision dashpot with a self-lubricated piston provides effective dampening of film motion against disturbances caused by film splices. The unit has an automatic film loop setter which locks the filter rollers when threading, assuring the correct length of the film loop. A detented tension switch adjusts for correct filter roller position. The tight loop film pulling mechanism permits complete interchange from one film size and speed to the other without altering or modifying the film transport.
Crystal speed control, Stepping motor sprocket drive CMOS logic and control, 2x speed local, 4x with MTE projector Sprocket declutch for start mark alignment, Machine can be cued on an off interlock buss with no interruption to buss, 16mm, 35mm speeds push-button selected, Interlock buss selection from four sources, Dual gage sprocket pads, Drive signal may be looped to drive several machines.
0.06% RMS at 90 FPM 0.08% RMS at 36 FPM

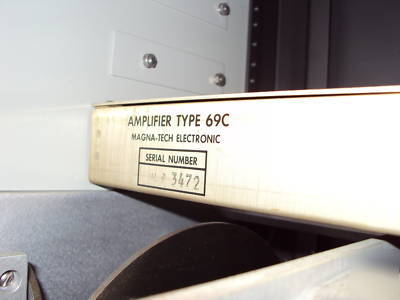

0.5% THD at +16dbm Output level
Standard SMPTE or CCIR curves for 16mm, 35mm & 17.5mm
Reel Spindle Drive & Controls Frequency Response
Single phase torque motors, Reel size take-up torque torque selector, Selector CW/CCW rotation upper spindle, Automatic film cutoff switch, wind and rewind buttons.
35mm: 1, 3, 4, 6, & 8 Track and 4 track Cinemascope Format
16mm: 200 Mil Edge or Center Track
400 Feet 30 Seconds, 1000 Feet 1 minute, 2000 Feet 2 minutes
600 ohms ungrounded + 4 VU Record Input- 15K ohm bridging + 4 VU buss
115V 10 Amps, 220V 5 amps, 50 or 60 cycles
Standard Models Ordering Codes
Type 4036 16/35mm Prefix MD Denotes dual reproducer Type 4036/7 16/35 & 17.5mm Prefix MRD Denotes one side reproduce, other side record/reproduce Prefix MRDE Denotes right side reproduce, left side erase "pickup" record reproduce
