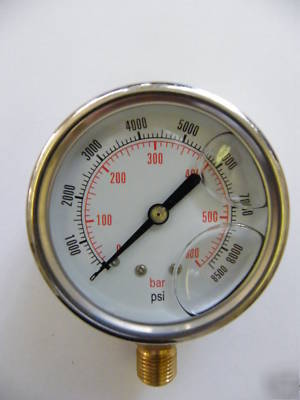

Hydraulic pressure gauge (63MM) base entry 0-8500 psi
Hydraulic Pressure Gauge (63mm) Rear Entry 0-8500 PSI
Pressure range: 0-8500 Psi
Aptitude: Standard pressure gauges are suitable for the measurement of air & oil up to +60 Celsius (+140), with non-corroding brass materials.
Measuring principle: -1 to 60 bar: Bourbon tube (copper alloy) & 100 to 600 bar: coiled bourbon tube
Case: Stainless steel case
Inspection glass: Plexiglass (shock resistant)
Measuring element: Copper alloy
Thread 1/4 BSP taper thread.
Accuracy: +/- 1,6% of maximum scale value
Temperature range: Ambience: -20 C to + 60 C, Medium 0 to +60 degrees C.
Certification 2.2 according EN10204
Inspection Certificate 3.1B acc EN10204
Calibration according EN17025
