Angle plate toolmaker machinist hardened 1 vee 2 clamp

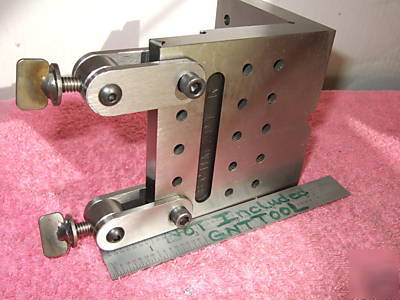

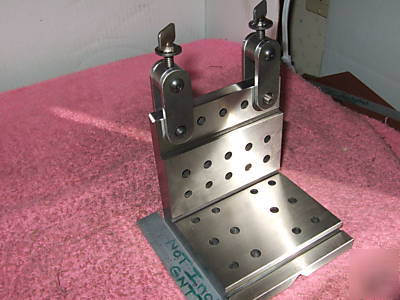

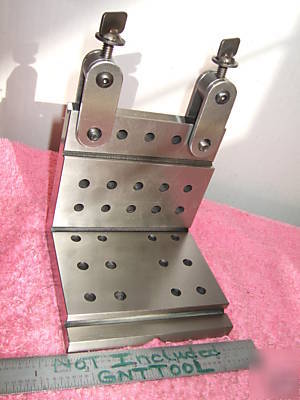

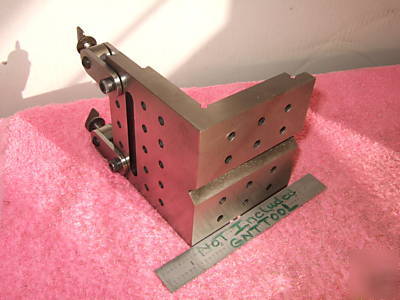

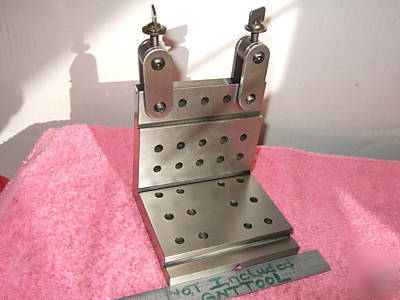

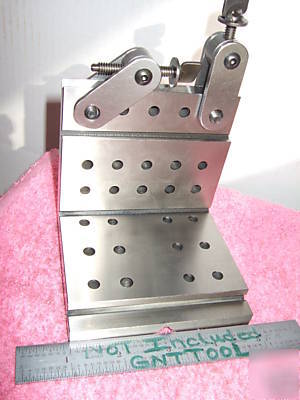

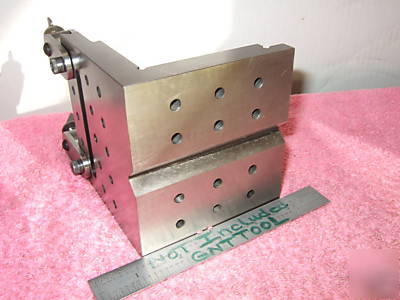

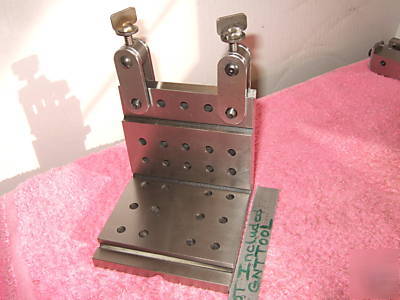

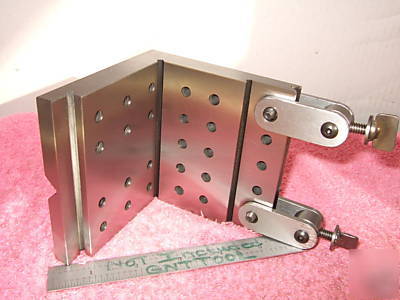

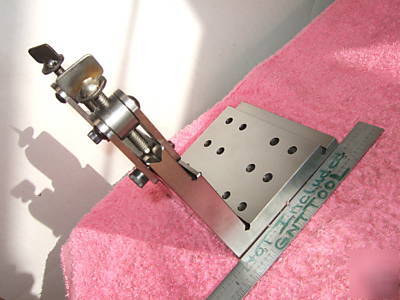

PRECISION GROUND ANGLE PLATE WITH (2) VEE'S AND (2) YOKE CLAMPS MADE FROM S-7 AND 4150 TOOL STEEL. . ANGLE PLATE HAS (27TOTAL) 1/4" X 20 HOLES AS SHOWN. VEE .55" WIDE HAS (12) 1/4" X 20 TAPPED HOLES NEXT TO IT FOR CLAMPING AS NEEDED FOR PINS AND PUNCHES VERY HANDY FOR EJECTOR PINS. FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW IT IS NICE!!!!! ANGLE PLATE IS AS SHOWN IN MINT PRECISION GROUND AND PRECISION CHAMFERED CONDITION. MACHINIST OR TOOLMAKER TYPICALLY USED FOR GRINDING,LIGHT MILL WORK OR EVEN INSPECTION AS IT IS A PRECISION GROUND ANGLE PLATE. SEE PICS. EXTREMELY NICE WELL MADE TOOLMAKER TOOLS. WE HAVE MANY TOOLS LISTED BY THIS AMERICAN TOOLMAKER INCLUDING V BLOCKS ,SINE SLIDE DRESSER,SLIDE DRESSER AND MUCH MORE! BE SURE TO CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS. SEE PICS AND ASK ANY QUESTIONS.

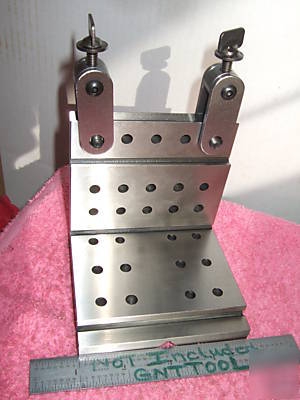

ANGLE PLATE MEASURES 3.912" WIDE X 3.858" TALL LEG WITH .4" VEE IN TOP OF IT. SECOND LEG MEASURES 3.797" LONG WITH .55" VEE IN ITS FACE. BLOCK HAS (278) TAPPED HOLES 1/4" X 20 IN FACES AS SHOWN AND (1) YOKE STYLE CLAMP TO USE AS NEEDED, AS SHOWN IN PICS. LONGEST LEG IS .639" THICK AND .445" THICK AND OTHER IS .644" THICK AND .374" THICK. STEPS ARE .194" X 1.07" FROM VEE ON TOP. SECOND STEP MEASURES .271" X .476" FROM TOP DOWN.

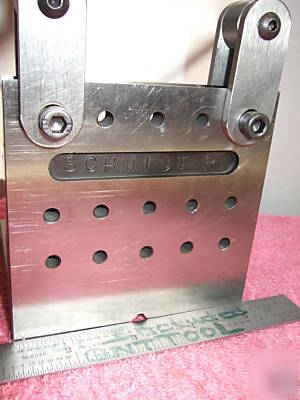

SUPER NICE CLEAN READY TO USE PLATE MADE BY AMERICAN TOOLMAKERS!!!!! PLATE IS IN NICE READY TO USE CONDITION AS SHOWN WITH NAME NEATLY STAMPED INTO RECESS PRIOR TO HEAT-TREAT AND GRINDING.. I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE!
