Sparkfun - hih-4030 humidity sensor breakout sen-09569
This is a breakout board for Honeywell's HIH-4030 humidity sensor. The HIH-4030 measures relative humidity (%RH) and delivers it as an analog output voltage. You can connect the output of the sensor directly to an ADC on a microcontroller; and, thanks to the sensor's near linear voltage output, the data is very easy to process.
Voltage applied to the supply pins should be within 4-5.8VDC, and optimally at 5V. The sensor will typically only consume about 200 A.

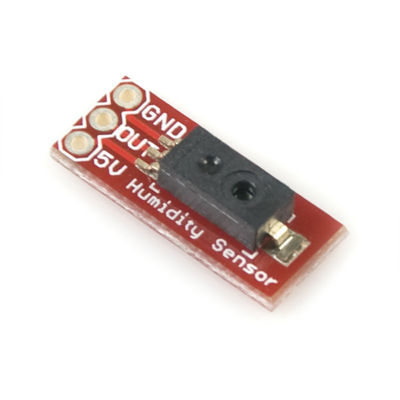

This product comes as shown in the picture, with the HIH-4030 soldered onto the breakout board. The pins of the 3-pin header are spaced by 0.1".
* Near linear, analog output
* All pins broken out to a 0.1" pitch header
* Laser trimmed interchangeability
* Low power design, typical current draw of only 200 A
* Stable, low drift performance
Dimensions: 0.75 x 0.30 " (19.05 x 7.62 mm)
* HIH-4030 Humidity Sensor Datasheet
